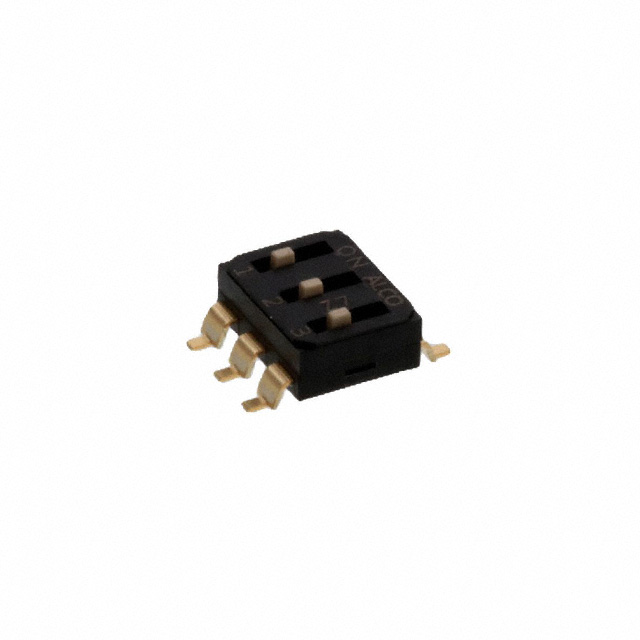

EDS03SGNNTR04Q
ActiveTE Connectivity Raychem Cable Protection
SWITCH SLIDE DIP SPST 0.025A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EDS03SGNNTR04Q
ActiveTE Connectivity Raychem Cable Protection
SWITCH SLIDE DIP SPST 0.025A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EDS03SGNNTR04Q |
|---|---|
| Actuator Level | Raised |
| Actuator Type | Slide (Standard) |
| Body Material | Nylon, Polyamide (PA) |
| Circuit | SPST |
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 25 mA |
| Electrical Life | 2000 Steps |
| Height Above Board | 3.8 mm |
| Height Above Board | 0.15 " |
| Length | 7.52 mm |
| Length [x] | 0.296 in |
| Mechanical Life | 2000 Cycles |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Pitch | Full |
| Pitch [x] | 0.1 in |
| Pitch [x] | 2.54 mm |
| Termination Style | Gull Wing |
| Voltage Rating | 24 VDC |
| Washable | False |
EDS03 Series
| Part | Pitch [x] | Pitch | Pitch [x] | Body Material | Operating Temperature [Max] | Operating Temperature [Min] | Height Above Board [z] | Height Above Board [z] | Current Rating (Amps) | Contact Finish | Washable | Actuator Level | Voltage Rating | Circuit | Mounting Type | Actuator Type | Mechanical Life | Length | Length [x] | Termination Style | Electrical Life | Contact Material | Height Above Board | Height Above Board |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | 0.1 in | Full | 2.54 mm | Nylon Polyamide (PA) | 85 °C | -20 C | 3.4 mm | 0.134 in | 25 mA | Gold | Flush Recessed | 24 VDC | SPST | Surface Mount | Slide (Standard) | 2000 Cycles | 7.52 mm | 0.296 in | Gull Wing | 2000 Steps | Copper Alloy | |||
TE Connectivity Raychem Cable Protection | 0.1 in | Full | 2.54 mm | Nylon Polyamide (PA) | 85 °C | -20 C | 25 mA | Gold | Raised | 24 VDC | SPST | Surface Mount | Slide (Standard) | 2000 Cycles | 7.52 mm | 0.296 in | Gull Wing | 2000 Steps | Copper Alloy | 3.8 mm | 0.15 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.01 | |
| 10 | $ 1.96 | |||
| 25 | $ 1.78 | |||
| 100 | $ 1.55 | |||
| 250 | $ 1.40 | |||
| Digi-Reel® | 1 | $ 2.01 | ||
| 10 | $ 1.96 | |||
| 25 | $ 1.78 | |||
| 100 | $ 1.55 | |||
| 250 | $ 1.40 | |||
| Tape & Reel (TR) | 900 | $ 1.30 | ||
| 1800 | $ 1.21 | |||
| 2700 | $ 1.09 | |||
| 6300 | $ 1.01 | |||
Description
General part information
EDS03 Series
Dip Switch SPST 3 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
