PD3FSC1

Active

Switchcraft Inc.

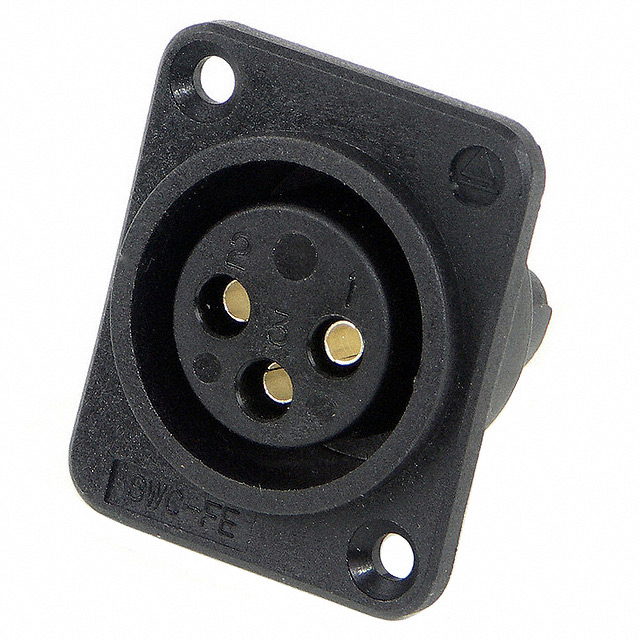

CONN PLUG FMALE XLR 3P SLDR CUP

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN PLUG FMALE XLR 3P SLDR CUP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Plug, Female Sockets Solder Cup

Technical documentation and resources

Specification	PD3FSC1	PD3FSC Series

Applications	Audio	Audio
Color	Black	Black
Connector Type	Female Sockets, Plug	Female Sockets, Plug
Contact Finish - Mating	Silver	Silver, Gold
Contact Material	Copper Alloy	Copper Alloy
Fastening Type	Push-Pull	Push-Pull
Features	Ground	Ground
Insert Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Flange	Flange
Primary Material	Plastic	Plastic
Shell Size - Insert	XLR	XLR

Part	Fastening Type	Insert Material	Connector Type	Features	Color	Contact Material	Shell Size - Insert	Mounting Feature	Primary Material	Material Flammability Rating	Contact Finish - Mating	Applications
Switchcraft Inc. PD3FSC2	Push-Pull	Thermoplastic	Female Sockets, Plug	Ground	Black	Copper Alloy	XLR	Flange	Plastic	UL94 V-0	Silver	Audio
Switchcraft Inc. PD3FSC2AU	Push-Pull	Thermoplastic	Female Sockets, Plug	Ground	Black	Copper Alloy	XLR	Flange	Plastic	UL94 V-0	Gold	Audio
Switchcraft Inc. PD3FSC1AU	Push-Pull	Thermoplastic	Female Sockets, Plug	Ground	Black	Copper Alloy	XLR	Flange	Plastic	UL94 V-0	Gold	Audio
Switchcraft Inc. PD3FSC1	Push-Pull	Thermoplastic	Female Sockets, Plug	Ground	Black	Copper Alloy	XLR	Flange	Plastic	UL94 V-0	Silver	Audio
