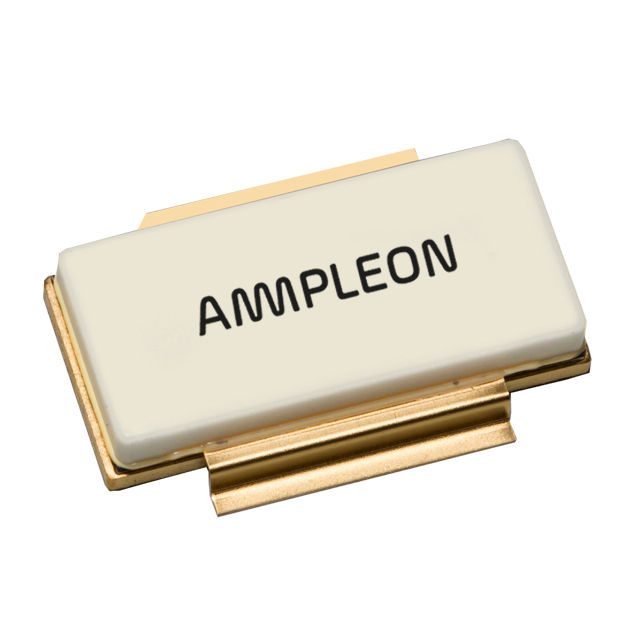

BLA9H0912LS-700GU
ActiveAmpleon USA Inc.
RF MOSFET LDMOS 50V CDFM2
Deep-Dive with AI
Search across all available documentation for this part.
BLA9H0912LS-700GU
ActiveAmpleon USA Inc.
RF MOSFET LDMOS 50V CDFM2
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BLA9H0912LS-700GU | BLA9 Series |
|---|---|---|
| Configuration | - | Common Source, Dual |
| Current - Test | 100 mA | 75 - 200 mA |
| Current Rating (Amps) | 2.8 µA | 1.4 - 4.2 µA |
| Frequency | - | 1.03 GHz |
| Frequency | - | 1.09 GHz |
| Gain | 20 dBi | 19 - 22 dBi |
| Mounting Type | Chassis Mount | Chassis Mount, Surface Mount |
| Package / Case | SOT-502E | SOT-502B, SOT-502A, SOT-539A, SOT-539B, SOT-502E |
| Power - Output | 700 W | 250 - 1200 W |
| Supplier Device Package | CDFM2 | SOT502B, CDFM2, SOT539A, SOT502A, SOT539B |
| Voltage - Rated | 106 V | 106 V |
| Voltage - Test | 50 V | 32 - 50 V |
BLA9 Series
RF MOSFET LDMOS 50V SOT502B
| Part | Voltage - Test | Package / Case | Voltage - Rated | Supplier Device Package | Power - Output | Current - Test | Gain | Current Rating (Amps) | Mounting Type | Frequency [Min] | Frequency [Max] | Configuration |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ampleon USA Inc. BLA9H0912LS-250U | 50 V | SOT-502B | 106 V | SOT502B | 250 W | 100 mA | 22 dBi | 1.4 µA | Chassis Mount | |||
Ampleon USA Inc. BLA9G1011L-300GU | 32 V | SOT-502A | CDFM2 | 317 W | 100 mA | 21.8 dB | 4.2 µA | Chassis Mount | 1.03 GHz | 1.09 GHz | ||
Ampleon USA Inc. BLA9H0912LS-1200PU | 50 V | SOT-539A | 106 V | SOT539A | 1200 W | 75 mA | 19 dB | 2.8 µA | Chassis Mount | |||
Ampleon USA Inc. BLA9H0912L-250GU | 50 V | SOT-502A | 106 V | CDFM2 | 250 W | 100 mA | 22 dBi | 1.4 µA | Chassis Mount | |||
Ampleon USA Inc. BLA9H0912L-700U | 50 V | SOT-502A | 106 V | SOT502A | 700 W | 100 mA | 20 dBi | 2.8 µA | Chassis Mount | |||
Ampleon USA Inc. BLA9H0912LS-700U | 50 V | SOT-502B | 106 V | SOT502B | 700 W | 100 mA | 20 dBi | 2.8 µA | Chassis Mount | |||
Ampleon USA Inc. BLA9H0912LS-1200PGJ | 50 V | SOT-539B | 106 V | SOT539B | 1200 W | 200 mA | 19 dB | 2.8 µA | Surface Mount | Common Source, Dual | ||
Ampleon USA Inc. BLA9H0912LS-250GU | 50 V | SOT-502E | 106 V | CDFM2 | 250 W | 100 mA | 22 dBi | 1.4 µA | Chassis Mount | |||
Ampleon USA Inc. BLA9H0912LS-700GU | 50 V | SOT-502E | 106 V | CDFM2 | 700 W | 100 mA | 20 dBi | 2.8 µA | Chassis Mount |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 342.11 | |
| 20 | $ 331.82 | |||
Description
General part information
BLA9 Series
RF Mosfet 50 V 100 mA 960MHz ~ 1.215GHz 20dB 700W CDFM2
