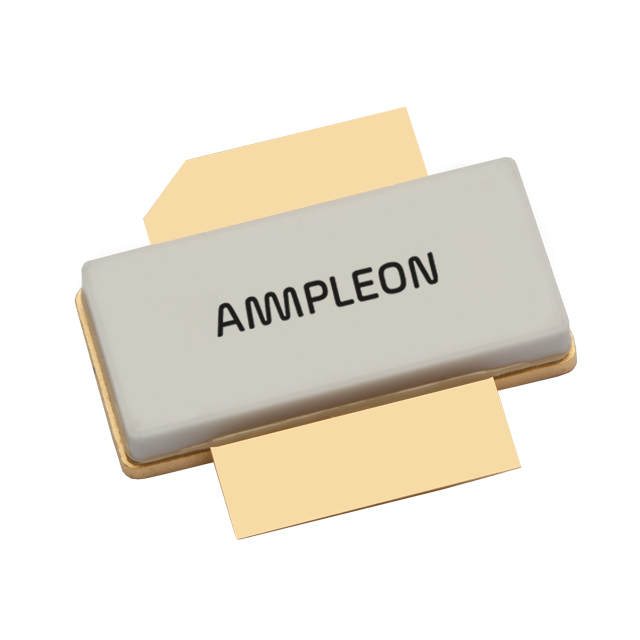

BLA9H0912LS-700U

Active

Ampleon USA Inc.

RF MOSFET LDMOS 50V SOT502B

Search across all available documentation for this part.

Active

Ampleon USA Inc.

RF MOSFET LDMOS 50V SOT502B

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF Mosfet 50 V 100 mA 960MHz ~ 1.215GHz 20dB 700W SOT502B

Technical documentation and resources

Parameters and characteristics commom to parts in this series

RF MOSFET LDMOS 50V SOT502B

Part	Voltage - Test	Package / Case	Voltage - Rated	Supplier Device Package	Power - Output	Current - Test	Gain	Current Rating (Amps)	Mounting Type	Frequency [Min]	Frequency [Max]	Configuration
Ampleon USA Inc. BLA9H0912LS-250U	50 V	SOT-502B	106 V	SOT502B	250 W	100 mA	22 dBi	1.4 µA	Chassis Mount
Ampleon USA Inc. BLA9G1011L-300GU	32 V	SOT-502A		CDFM2	317 W	100 mA	21.8 dB	4.2 µA	Chassis Mount	1.03 GHz	1.09 GHz
Ampleon USA Inc. BLA9H0912LS-1200PU	50 V	SOT-539A	106 V	SOT539A	1200 W	75 mA	19 dB	2.8 µA	Chassis Mount
Ampleon USA Inc. BLA9H0912L-250GU	50 V	SOT-502A	106 V	CDFM2	250 W	100 mA	22 dBi	1.4 µA	Chassis Mount
Ampleon USA Inc. BLA9H0912L-700U	50 V	SOT-502A	106 V	SOT502A	700 W	100 mA	20 dBi	2.8 µA	Chassis Mount
Ampleon USA Inc. BLA9H0912LS-700U	50 V	SOT-502B	106 V	SOT502B	700 W	100 mA	20 dBi	2.8 µA	Chassis Mount
Ampleon USA Inc. BLA9H0912LS-1200PGJ	50 V	SOT-539B	106 V	SOT539B	1200 W	200 mA	19 dB	2.8 µA	Surface Mount			Common Source, Dual
Ampleon USA Inc. BLA9H0912LS-250GU	50 V	SOT-502E	106 V	CDFM2	250 W	100 mA	22 dBi	1.4 µA	Chassis Mount
Ampleon USA Inc. BLA9H0912LS-700GU	50 V	SOT-502E	106 V	CDFM2	700 W	100 mA	20 dBi	2.8 µA	Chassis Mount
