TB1-2G-AC-6

Active

Switch Components

VAC DPDT (ON)-OFF-(ON), 15/32

Search across all available documentation for this part.

Active

Switch Components

VAC DPDT (ON)-OFF-(ON), 15/32

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TB1-2G-AC-6	TB1-2G Series

Actuator Length [x]	16.5 mm	16.5 mm
Actuator Type	Standard Round	Standard Round
Bushing Thread	15/32-32	15/32-32
Circuit	DPDT	DPDT
Current Rating (Amps)	10 A	10 - 21 A
Electrical Life	-	6000 Cycles
Illumination	Non-Illuminated	Non-Illuminated
Panel Cutout Dimensions [diameter]	12.2 mm	12 - 12.2 mm
Switch Function	Mom-Off-Mom	Mom-Off-Mom
Termination Style	Screw Terminal	Quick Connect - 0.250" (6.3mm), Screw Terminal
Voltage Rating - AC	250 V	125 - 250 V
Voltage Rating - DC	-	14 V

VAC DPDT (ON)-OFF-(ON), 15/32

Part	Illumination	Switch Function	Current Rating (Amps)	Actuator Type	Termination Style	Voltage Rating - AC	Actuator Length [x]	Bushing Thread	Panel Cutout Dimensions [diameter]	Circuit	Electrical Life	Voltage Rating - DC
Switch Components TB1-2G-AC-1	Non-Illuminated	Mom-Off-Mom	10 A	Standard Round	Quick Connect - 0.250" (6.3mm)	250 V	16.5 mm	15/32-32	12.2 mm	DPDT
Switch Components TB1-2G-DC-6	Non-Illuminated	Mom-Off-Mom	20 A, 21 A	Standard Round	Screw Terminal	125 V	16.5 mm	15/32-32	12 mm	DPDT	6000 Cycles	14 V
Switch Components TB1-2G-AC-6	Non-Illuminated	Mom-Off-Mom	10 A	Standard Round	Screw Terminal	250 V	16.5 mm	15/32-32	12.2 mm	DPDT
Switch Components TB1-2G-DC-1	Non-Illuminated	Mom-Off-Mom	20 A, 21 A	Standard Round	Quick Connect - 0.250" (6.3mm)	125 V	16.5 mm	15/32-32	12 mm	DPDT	6000 Cycles	14 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

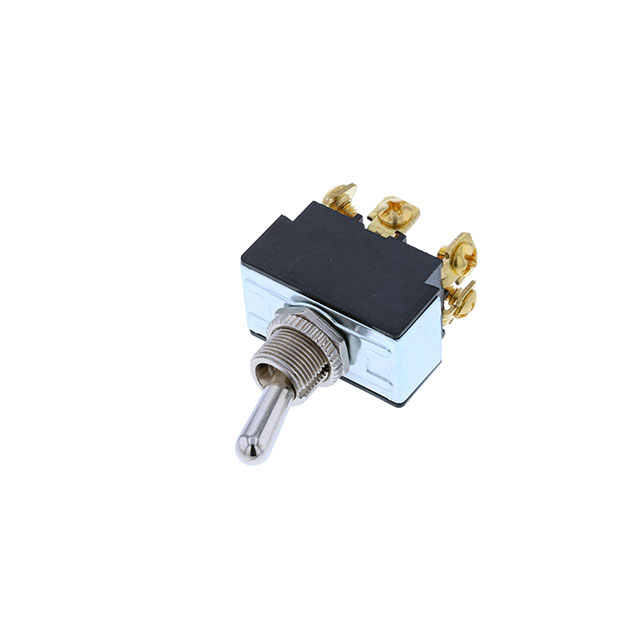

Toggle Switch DPDT Panel Mount
