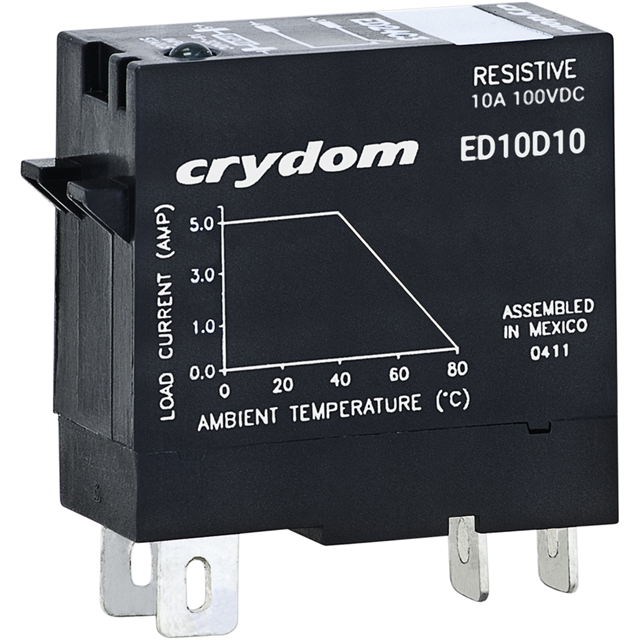

ED10D10
ActiveSensata-Crydom
SSR RELAY SPST-NO 10A 1-100V
Deep-Dive with AI
Search across all available documentation for this part.
ED10D10
ActiveSensata-Crydom
SSR RELAY SPST-NO 10A 1-100V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ED10D10 |
|---|---|
| Approval Agency | cURus, CE, IEC |
| Load Current | 10 A |
| Mounting Type | Socketable |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -30 ░C |
| Output Type | DC |
| Package / Case | Module |
| Termination Style | Plug In |
| Voltage - Input [Max] | 15 V |
| Voltage - Input [Min] | 5 V |
| Voltage - Load [Max] | 100 V |
| Voltage - Load [Min] | 1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 28.72 | |
| 10 | $ 27.35 | |||
| 50 | $ 26.11 | |||
| 100 | $ 25.34 | |||
Description
General part information
ED10D1 Series
Solid State SPST-NO (1 Form A) Module
Documents
Technical documentation and resources
No documents available
