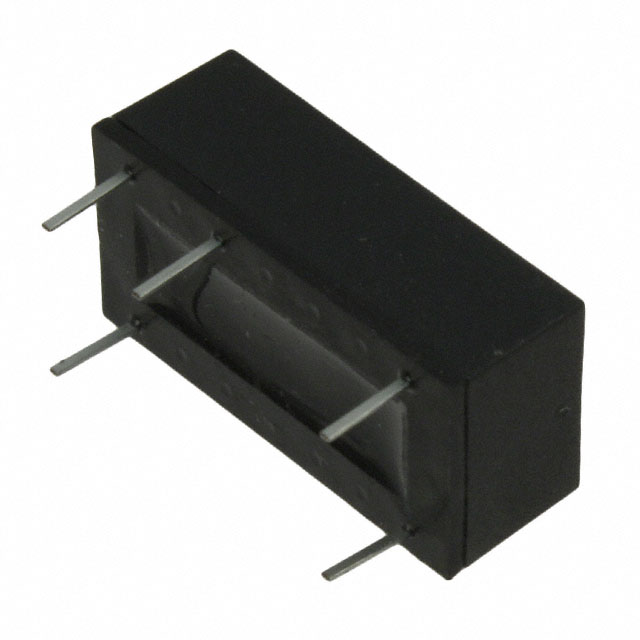

MEV1S0515DC
ActiveMurata Power Solutions Inc.
DC/DC CONVERTER 15V 1W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MEV1S0515DC
ActiveMurata Power Solutions Inc.
DC/DC CONVERTER 15V 1W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MEV1S0515DC | MEV1S05 Series |
|---|---|---|
| Applications | ITE (Commercial) | ITE (Commercial) |
| Current - Output (Max) [Max] | 67 mA | 67 - 200 mA |
| Efficiency | 87.5 % | 84 - 87.5 % |
| Mounting Type | Through Hole | Through Hole |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 14-DIP Module, 5 Leads | 7-SIP Module, 5 Leads, 6-SIP Module, 5 Leads, 14-DIP Module, 5 Leads |
| Size / Dimension [x] | 19.7 mm | 19.6 - 19.7 mm |
| Size / Dimension [x] | 0.77 in | 0.77 in |
| Size / Dimension [y] | 10 mm | 6.1 - 10 mm |
| Size / Dimension [y] | 0.39 " | 0.24 - 0.39 " |
| Size / Dimension [z] | 0.28 " | 0.28 - 0.4 " |
| Size / Dimension [z] | 7 mm | 7 - 10.2 mm |
| Type | Isolated Module | Isolated Module |
| Voltage - Input (Max) [Max] | 5.5 V | 5.5 V |
| Voltage - Input (Min) [Min] | 4.5 V | 4.5 V |
| Voltage - Isolation | 3000 V | 3000 V |
| Voltage - Output 1 | 15 V | 5 - 15 V |
MEV1S05 Series
ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, SIP, 1:1, 1 W, 1 OUTPUT, 12 V
| Part | Current - Output (Max) [Max] | Mounting Type | Voltage - Isolation | Efficiency | Voltage - Output 1 | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Type | Voltage - Input (Min) [Min] | Number of Outputs | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Max) [Max] | Package / Case | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. MEV1S0512SC | 84 mA | Through Hole | 3000 V | 87 % | 12 V | 19.7 mm | 0.4 " | 6.2 mm | 0.77 in | 0.24 " | 10.2 mm | Isolated Module | 4.5 V | 1 | 85 °C | -40 °C | 5.5 V | 7-SIP Module, 5 Leads | ITE (Commercial) |
Murata Power Solutions Inc. MEV1S0505SC | 200 mA | Through Hole | 3000 V | 84 % | 5 V | 19.6 mm | 0.4 " | 6.1 mm | 0.77 in | 0.24 " | 10.2 mm | Isolated Module | 4.5 V | 1 | 85 °C | -40 °C | 5.5 V | 6-SIP Module, 5 Leads | ITE (Commercial) |
Murata Power Solutions Inc. MEV1S0515DC | 67 mA | Through Hole | 3000 V | 87.5 % | 15 V | 19.7 mm | 0.28 " | 10 mm | 0.77 in | 0.39 " | 7 mm | Isolated Module | 4.5 V | 1 | 85 °C | -40 °C | 5.5 V | 14-DIP Module, 5 Leads | ITE (Commercial) |
Murata Power Solutions Inc. MEV1S0509SC | Through Hole | 3000 V | 86.5 % | 9 V | 19.7 mm | 0.4 " | 6.2 mm | 0.77 in | 0.24 " | 10.2 mm | Isolated Module | 4.5 V | 1 | 85 °C | -40 °C | 5.5 V | 7-SIP Module, 5 Leads | ITE (Commercial) | |
Murata Power Solutions Inc. MEV1S0509DC | Through Hole | 3000 V | 86.5 % | 9 V | 19.7 mm | 0.28 " | 10 mm | 0.77 in | 0.39 " | 7 mm | Isolated Module | 4.5 V | 1 | 85 °C | -40 °C | 5.5 V | 14-DIP Module, 5 Leads | ITE (Commercial) | |
Murata Power Solutions Inc. MEV1S0512DC | 84 mA | Through Hole | 3000 V | 87 % | 12 V | 19.7 mm | 0.28 " | 10 mm | 0.77 in | 0.39 " | 7 mm | Isolated Module | 4.5 V | 1 | 85 °C | -40 °C | 5.5 V | 14-DIP Module, 5 Leads | ITE (Commercial) |
Murata Power Solutions Inc. MEV1S0515SC | 67 mA | Through Hole | 3000 V | 87.5 % | 15 V | 19.6 mm | 0.4 " | 6.1 mm | 0.77 in | 0.24 " | 10.2 mm | Isolated Module | 4.5 V | 1 | 85 °C | -40 °C | 5.5 V | 6-SIP Module, 5 Leads | ITE (Commercial) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MEV1S05 Series
Isolated Module DC DC Converter 1 Output 15V 67mA 4.5V - 5.5V Input
