8770MN 0081000

Active

Belden Inc.

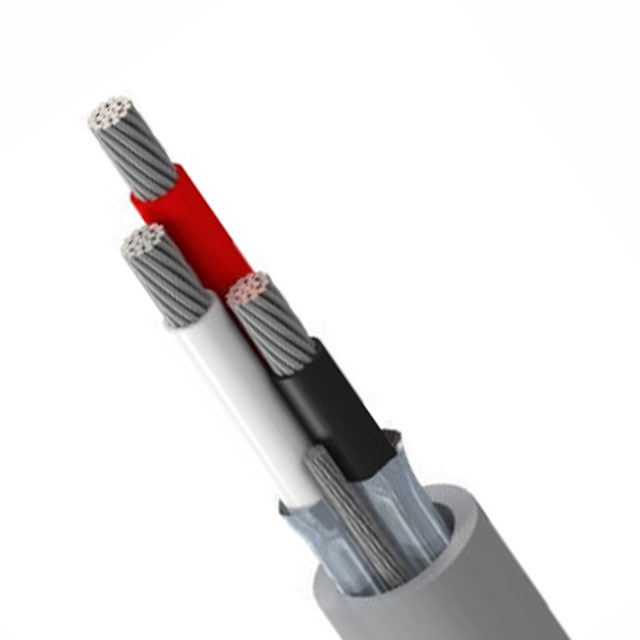

CABLE 3COND 18AWG GRAY SHLD 50'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

8770MN 0081000

Active

Belden Inc.

CABLE 3COND 18AWG GRAY SHLD 50'

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8770MN 0081000

Cable Type	Multi-Conductor
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	41 strands
Conductor Strand [custom]	34 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.181 in
Jacket (Insulation) Diameter [diameter]	4.6 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.406 mm
Jacket (Insulation) Thickness	0.016 in
Jacket Color	Gray
Length	1000 ft
Length	304.8 m, 15.24 m
Length [x]	50 ft
Number of Conductors	3
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2937
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Voltage	300 V
Wire Gauge	18 AWG

8770MN Series

Part	Features	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Ratings	Operating Temperature [Min]	Operating Temperature [Max]	Jacket Color	Cable Type	Shield Coverage	Wire Gauge	Jacket (Insulation) Material	Length	Length	Number of Conductors	Conductor Strand [custom]	Conductor Strand [custom]	Shield Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length [x]	Voltage	Conductor Insulation	Conductor Material	Shield Material	Usage	Length [x]
Belden Inc. 8770MN 0081000	Drain Wire	0.406 mm	0.016 in	UL Style 2937	-20 C	80 C	Gray	Multi-Conductor	100 %	18 AWG	Poly-Vinyl Chloride (PVC)	1000 ft	15.24 m 304.8 m	3	41 strands	34 AWG	Foil	0.181 in	4.6 mm	50 ft	300 V	Polypropylene (PP)	Copper Tinned	Aluminum
Belden Inc. 8770MN 0041000	Drain Wire	0.406 mm	0.016 in	UL Style 2937	-20 C	80 C	Yellow	Multi-Conductor	100 %	18 AWG	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m	3	41 strands	34 AWG	Foil	0.181 in	4.6 mm		300 V	Polypropylene (PP)	Copper Tinned	Aluminum	Audio Control Instrumentation
Belden Inc. 8770MN 004100	Drain Wire	0.406 mm	0.016 in	UL Style 2937	-20 C	80 C	Yellow	Multi-Conductor	100 %	18 AWG	Poly-Vinyl Chloride (PVC)			3	41 strands	34 AWG	Foil	0.181 in	4.6 mm	100 ft	300 V	Polypropylene (PP)	Copper Tinned	Aluminum	Audio Control Instrumentation	30.5 m
Belden Inc. 8770MN 006100	Drain Wire	0.406 mm	0.016 in	UL Style 2937	-20 C	80 C	Blue	Multi-Conductor	100 %	18 AWG	Poly-Vinyl Chloride (PVC)			3	41 strands	34 AWG	Foil	0.181 in	4.6 mm	100 ft	300 V	Polypropylene (PP)	Copper Tinned	Aluminum	Audio Control Instrumentation	30.5 m
Belden Inc. 8770MN 0061000	Drain Wire	0.406 mm	0.016 in	UL Style 2937	-20 C	80 C	Blue	Multi-Conductor	100 %	18 AWG	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m	3	41 strands	34 AWG	Foil	0.181 in	4.6 mm		300 V	Polypropylene (PP)	Copper Tinned	Aluminum	Audio Control Instrumentation
Belden Inc. 8770MN 008100	Drain Wire	0.406 mm	0.016 in	UL Style 2937	-20 C	80 C	Gray	Multi-Conductor	100 %	18 AWG	Poly-Vinyl Chloride (PVC)			3	41 strands	34 AWG	Foil	0.181 in	4.6 mm	100 ft	300 V	Polypropylene (PP)	Copper Tinned	Aluminum	Audio Control Instrumentation	30.5 m

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 190.85
		5	$ 156.15
		10	$ 121.45
		25	$ 104.10
		50	$ 97.16
		100	$ 90.22
	Spool	1	$ 2556.54

Description

General part information

8770MN Series

3 Conductor Multi-Conductor Cable Gray 18 AWG Foil 1000.0' (304.8m)
