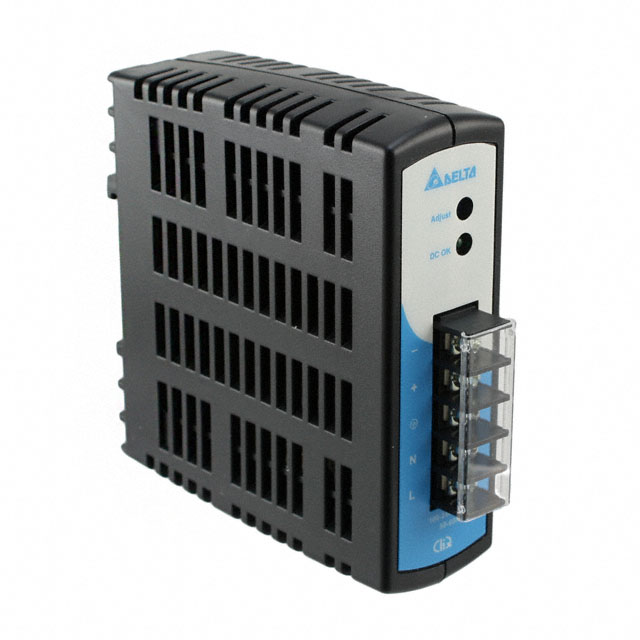

DRP012V030W1AZ

Obsolete

Delta Electronics

AC/DC POWER SUPPLY SINGLE-OUT 12V 2.5A 30W 5-PIN CARTON

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Power Supplies Catalog, Standard

DRP012V030W1AZ

Obsolete

Delta Electronics

AC/DC POWER SUPPLY SINGLE-OUT 12V 2.5A 30W 5-PIN CARTON

Deep-Dive with AI

DocumentsDatasheet Power Supplies Catalog, Standard

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DRP012V030W1AZ

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	85 VAC
Applications	ITE (Commercial)
Approval Agency	EN, CE, CB Scheme, EAC, CSA, SIQ, UL
Current - Output (Max) [Max]	2.5 A
Efficiency	85 %
Features	Adjustable Output, Universal Input
Input Type	AC
Number of Outputs	1
Operating Temperature [Max]	75 ¯C
Operating Temperature [Min]	-20 °C
Power (Watts)	30 W
Size / Dimension [x]	3.96 in
Size / Dimension [x]	100.6 mm
Size / Dimension [y]	32 mm
Size / Dimension [y]	1.26 in
Size / Dimension [z]	3.94 in
Size / Dimension [z]	100 mm
Standard Number	55032, 50581, 61000-3-2, 61000-6-2, 61000-3-3, 107.1-01, 60950-1, 55024, 508, 61000-6-1, 55011
Voltage - Isolation	4000 V
Voltage - Output 1	12 V

DRP012 Series

Part	Features	Voltage - Output 1	Approval Agency	Current - Output (Max) [Max]	Number of Outputs	Applications	Standard Number	Input Type	Power (Watts)	Voltage - Isolation	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]
Delta Electronics DRP012V015W1AZ	Adjustable Output Universal Input	12 V	CB Scheme CE CSA EAC EN SIQ UL	1.25 A	1	ITE (Commercial)	107.1-01 50581 508 55011 55024 55032 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-2	AC	15 W	4000 V	85 VAC	264 VAC	84 %	-20 °C	80 ¯C	3.94 in	32 mm	1.26 in	3.96 in	100.6 mm	100 mm
Delta Electronics DRP012V030W1AZ	Adjustable Output Universal Input	12 V	CB Scheme CE CSA EAC EN SIQ UL	2.5 A	1	ITE (Commercial)	107.1-01 50581 508 55011 55024 55032 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-2	AC	30 W	4000 V	85 VAC	264 VAC	85 %	-20 °C	75 ¯C	3.94 in	32 mm	1.26 in	3.96 in	100.6 mm	100 mm
Delta Electronics DRP012V015W1AY	Adjustable Output Universal Input	12 V	ATEX EN CB Scheme CE CSA DNV GL EAC EN SIQ UL	1.25 A	1	ITE (Commercial)	107.1-01 12.12.09 213 50581 508 55011 55024 55032 60079-15 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-2	AC	15 W	4000 V	85 VAC	264 VAC	84 %	-20 °C	80 ¯C	3.94 in	32 mm	1.26 in	3.96 in	100.6 mm	100 mm
Delta Electronics DRP012V060W1AA	Adjustable Output Load Sharing Universal Input	12 V	ATEX EN CB Scheme CE CSA DNV GL EAC EN SIQ UL	5 A	1	ITE (Commercial)	107.1-01 12.12.09 213 50581 508 55011 55024 55032 60079-15 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-2	AC		4000 V	85 VAC	264 VAC	86 %	-20 °C	80 ¯C	4.76 "	32 mm	1.26 in	4.72 in	120 mm	121 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 31.93
		10	$ 28.06
		25	$ 26.87
		40	$ 25.96
		50	$ 25.85
		80	$ 24.98
		100	$ 24.86
		120	$ 24.41
		250	$ 23.62

Description

General part information

DRP012 Series

AC/DC POWER SUPPLY SINGLE-OUT 12V 2.5A 30W 5-PIN CARTON

Documents

Technical documentation and resources

Datasheet

Power Supplies Catalog, Standard

Datasheet
