LM5116HJD
Active80V HIGH TEMPERATURE WIDE RANGE SYNCHRONOUS BUCK CONTROLLER
Deep-Dive with AI
Search across all available documentation for this part.
LM5116HJD
Active80V HIGH TEMPERATURE WIDE RANGE SYNCHRONOUS BUCK CONTROLLER
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | LM5116HJD | LM5116 Series |
|---|---|---|
| Board Type | - | Fully Populated, Bare (Unpopulated) |
| Clock Sync | True | True |
| Control Features | Frequency Control, Enable, Soft Start, Ramp | Frequency Control, Enable, Soft Start, Ramp |
| Current - Output | - | 5 - 20 A |
| Frequency - Switching | 200 kHz, 535 kHz | 200 - 535 kHz |
| Function | Step-Down | Step-Down |
| Main Purpose | - | DC/DC, Step Down |
| Mounting Type | Through Hole | Surface Mount, Through Hole |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 175 ░C | 125 - 175 ¯C |
| Operating Temperature [Min] | -55 °C | -55 - -40 °C |
| Output Configuration | Positive | Positive |
| Output Phases | 1 | 1 |
| Output Type | Transistor Driver | Transistor Driver |
| Outputs and Type | - | Non-Isolated |
| Outputs and Type | - | 1 |

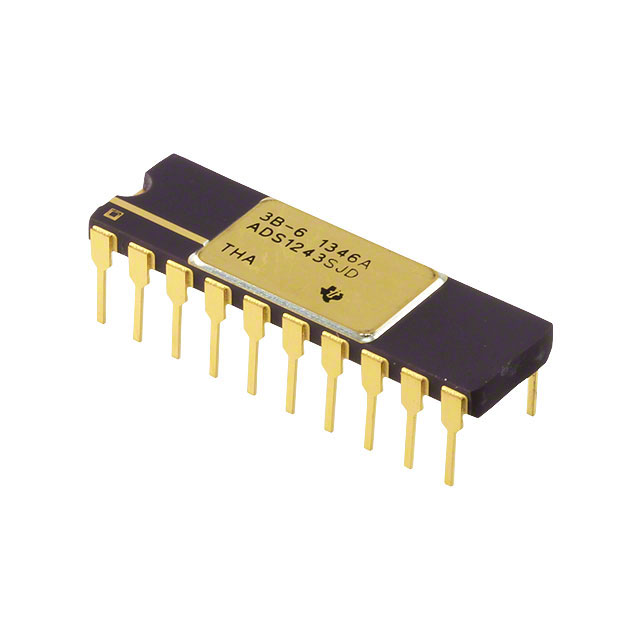

| Package / Case | 20-CDIP, Window | 20-PowerTSSOP, 20-CSOIC, 20-CDIP, Window |
| Package / Case | 7.62 mm | 7.62 mm |
| Package / Case | 0.3 in | 0.3 in |
| Package / Case | - | 0.173 in |
| Package / Case | - | 4.4 mm |
| Package / Case | - | 0.275 - 7 in |
| Supplied Contents | - | Board(s) |
| Supplier Device Package | 20-CDIP | 20-HTSSOP, 20-CFP, 20-CDIP |
| Synchronous Rectifier | True | True |
| Topology | Buck | Buck |
| Utilized IC / Part | - | LM5116 |
| Voltage - Input | - | 7 - 15 V |
| Voltage - Input | - | 60 - 100 V |
| Voltage - Output | - | 5 - 12 V |
| Voltage - Supply (Vcc/Vdd) [Max] | 80 V | 80 - 100 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 6 V | 6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 203.30 | |
| 18 | $ 194.71 | |||
| 36 | $ 190.41 | |||
| Texas Instruments | TUBE | 1 | $ 170.10 | |
| 10 | $ 155.93 | |||
| 100 | $ 141.75 | |||
LM5116 Series
BOARD EVALUATION FOR LM5116-12
| Part | Voltage - Input [Min] | Voltage - Input [Max] | Supplied Contents | Voltage - Output | Main Purpose | Frequency - Switching | Board Type | Utilized IC / Part | Current - Output | Outputs and Type | Outputs and Type | Topology | Control Features | Package / Case [custom] | Package / Case | Package / Case [custom] | Clock Sync | Voltage - Supply (Vcc/Vdd) [Max] | Voltage - Supply (Vcc/Vdd) [Min] | Number of Outputs | Synchronous Rectifier | Output Phases | Output Configuration | Mounting Type | Supplier Device Package | Function | Output Type | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Package / Case | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments LM5116-12EVAL | 15 V | 80 V | Board(s) | 12 V | DC/DC, Step Down | 250 kHz | Fully Populated | LM5116 | 5 A | Non-Isolated | 1 | |||||||||||||||||||||
Texas Instruments LM5116MH | 200 kHz, 535 kHz | Buck | Enable, Frequency Control, Ramp, Soft Start | 0.173 in | 20-PowerTSSOP | 4.4 mm | 100 V | 6 V | 1 | 1 | Positive | Surface Mount | 20-HTSSOP | Step-Down | Transistor Driver | 125 ¯C | -40 °C | |||||||||||||||
Texas Instruments LM5116EVAL/NOPB | 7 V | 60 V | Board(s) | 5 V | DC/DC, Step Down | 250 kHz | Fully Populated | LM5116 | 7 A | Non-Isolated | 1 | |||||||||||||||||||||
Texas Instruments LM5116MH/NOPB | 200 kHz, 535 kHz | Buck | Enable, Frequency Control, Ramp, Soft Start | 0.173 in | 20-PowerTSSOP | 4.4 mm | 100 V | 6 V | 1 | 1 | Positive | Surface Mount | 20-HTSSOP | Step-Down | Transistor Driver | 125 ¯C | -40 °C | |||||||||||||||
Texas Instruments LM5116MHX | 200 kHz, 535 kHz | Buck | Enable, Frequency Control, Ramp, Soft Start | 0.173 in | 20-PowerTSSOP | 4.4 mm | 100 V | 6 V | 1 | 1 | Positive | Surface Mount | 20-HTSSOP | Step-Down | Transistor Driver | 125 ¯C | -40 °C | |||||||||||||||
Texas Instruments LM5116BUCKEVM-BLDT | 7 V | 100 V | Board(s) | DC/DC, Step Down | Bare (Unpopulated) | LM5116 | 20 A | Non-Isolated | 1 | |||||||||||||||||||||||
Texas Instruments LM5116WG/NOPB | 200 kHz, 535 kHz | Buck | Enable, Frequency Control, Ramp, Soft Start | 20-CSOIC | 100 V | 6 V | 1 | 1 | Positive | Surface Mount | 20-CFP | Step-Down | Transistor Driver | 125 ¯C | -40 °C | 0.275 in, 7 mm | ||||||||||||||||
Texas Instruments LM5116MHX/NOPB | 200 kHz, 535 kHz | Buck | Enable, Frequency Control, Ramp, Soft Start | 0.173 in | 20-PowerTSSOP | 4.4 mm | 100 V | 6 V | 1 | 1 | Positive | Surface Mount | 20-HTSSOP | Step-Down | Transistor Driver | 125 ¯C | -40 °C | |||||||||||||||
Texas Instruments LM5116-12EVAL/NOPB | 15 V | 80 V | Board(s) | 12 V | DC/DC, Step Down | 250 kHz | Fully Populated | LM5116 | 5 A | Non-Isolated | 1 | |||||||||||||||||||||
Texas Instruments LM5116HJD | 200 kHz, 535 kHz | Buck | Enable, Frequency Control, Ramp, Soft Start | 20-CDIP, Window | 80 V | 6 V | 1 | 1 | Positive | Through Hole | 20-CDIP | Step-Down | Transistor Driver | 175 ░C | -55 °C | 7.62 mm | 0.3 in |
Description
General part information
LM5116 Series
The LM5116 is a synchronous buck controller intended for step-down regulator applications from a high voltage or widely varying input supply. The control method is based upon current mode control utilizing an emulated current ramp. Current mode control provides inherent line feed-forward, cycle by cycle current limiting and ease of loop compensation. The use of an emulated control ramp reduces noise sensitivity of the pulse-width modulation circuit, allowing reliable control of very small duty cycles necessary in high input voltage applications. The operating frequency is programmable from 50 kHz to 1 MHz. The LM5116 drives external high-side and low-side NMOS power switches with adaptive dead-time control. A user-selectable diode emulation mode enables discontinuous mode operation for improved efficiency at light load conditions. A low quiescent current shutdown disables the controller and consumes less than 10 µA of total input current. Additional features include a high voltage bias regulator, automatic switch-over to external bias for improved efficiency, thermal shutdown, frequency synchronization, cycle by cycle current limit and adjustable line under-voltage lockout.
The LM5116 is a synchronous buck controller intended for step-down regulator applications from a high voltage or widely varying input supply. The control method is based upon current mode control utilizing an emulated current ramp. Current mode control provides inherent line feed-forward, cycle by cycle current limiting and ease of loop compensation. The use of an emulated control ramp reduces noise sensitivity of the pulse-width modulation circuit, allowing reliable control of very small duty cycles necessary in high input voltage applications. The operating frequency is programmable from 50 kHz to 1 MHz. The LM5116 drives external high-side and low-side NMOS power switches with adaptive dead-time control. A user-selectable diode emulation mode enables discontinuous mode operation for improved efficiency at light load conditions. A low quiescent current shutdown disables the controller and consumes less than 10 µA of total input current. Additional features include a high voltage bias regulator, automatic switch-over to external bias for improved efficiency, thermal shutdown, frequency synchronization, cycle by cycle current limit and adjustable line under-voltage lockout.
