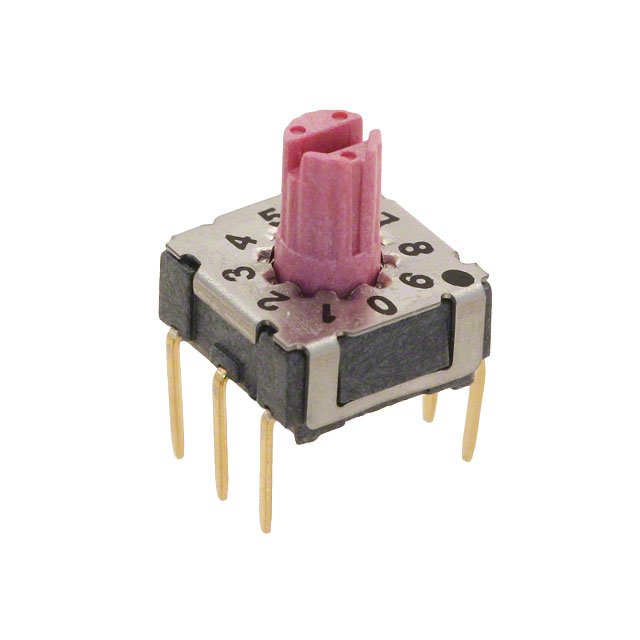

RDMBR10P1T

Active

E-Switch

SWITCH ROTARY DIP BCD 0.1A 42V

Search across all available documentation for this part.

Active

E-Switch

SWITCH ROTARY DIP BCD 0.1A 42V

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Height Above Board [z]	Height Above Board	Circuit	Pitch [x]	Pitch	Pitch [x]	Length [x]	Length [x]	Termination Style	Number of Positions	Actuator Level	Current Rating (Amps)	Contact Finish	Washable	Electrical Life	Mounting Type	Actuator Type	Mechanical Life	Features	Voltage Rating	Height Above Board [z]
E-Switch RDMBR10R2T	125 °C	-60 °C	0.291 in	7.39 mm	BCD	0.1 in	Full	2.54 mm	0.291 in	7.4 mm	PC Pin	10	Raised	100 mA	Gold		25000 Steps	Through Hole Right Angle	Rotary with Shaft	25000 Steps	IP67 - Dust Tight Waterproof	42 VDC
E-Switch RDMBR10P1T	125 °C	-60 °C	0.321 in		BCD	0.1 in	Full	2.54 mm	0.291 in	7.4 mm	PC Pin	10	Raised	100 mA	Gold		25000 Steps	Through Hole	Rotary with Shaft	25000 Steps	IP67 - Dust Tight Waterproof	42 VDC	8.15 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1050	$ 2.03

General part information

Dip Switch BCD 10 Position Through Hole Rotary with Shaft Actuator 100mA 42VDC
