REFFRIDGEC101T6EDTOBO1
ActiveTHE REF_FRIDGE_C101T_6ED IS A REFERENCE BOARD FOR EFFICIENT CONTROL OF ROTARY FRIDGE COMPRESSOR DRIVES POWERED BY IMC101T MOTOR CONTROL IC
Deep-Dive with AI
Search across all available documentation for this part.
REFFRIDGEC101T6EDTOBO1
ActiveTHE REF_FRIDGE_C101T_6ED IS A REFERENCE BOARD FOR EFFICIENT CONTROL OF ROTARY FRIDGE COMPRESSOR DRIVES POWERED BY IMC101T MOTOR CONTROL IC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | REFFRIDGEC101T6EDTOBO1 |
|---|---|
| Embedded | False |
| Function | Motor Controller/Driver |
| Primary Attributes | Compressor |
| Secondary Attributes | Graphical User Interface (GUI) |
| Supplied Contents | Cable(s), Board(s) |
| Type | Power Management |
| Utilized IC / Part | 6EDL04I06PT, IKD04N60RC2, IMC101T-T038 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
REFFRIDGE Series

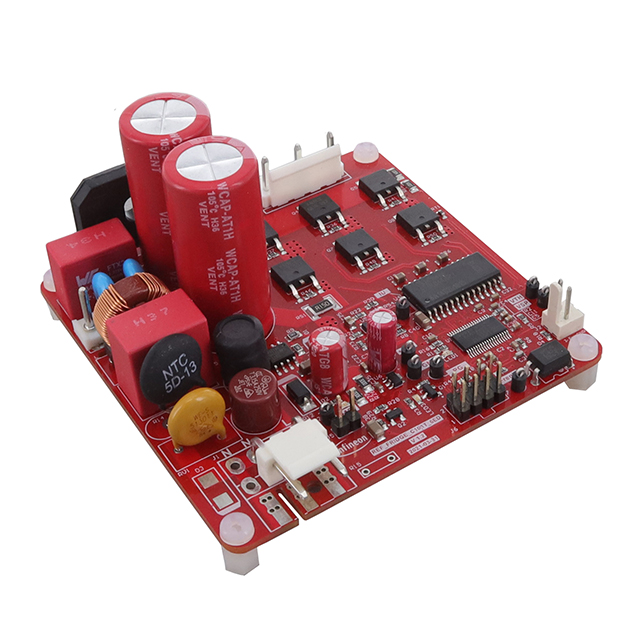

The REF_Fridge_C101T_6ED is a ready-to-use reference board designed for refrigerator compressors. It demonstrates a one-stop shop Infineon solution, including 600 V three-phase gate driver IC6EDL04I06PT, 600 V RC-D2 IGBTIKD04N60RC2, digital motor control IC iMOTION™IMC101T-T038and linear voltage regulators IFX54211MB V33. This discrete solution with combination of our gate driver, IGBT and motor control IC offers maximum layout and design flexibility, e.g. for multi-platform use for different power levels. The design can easily be copied to a final mass-production application board, and therefore has a fast time to market. It can be interfaced throughiMOTION™ Link. This tool is designed to program and debug different series of iMOTION™ motor control ICs. It is essential for tuning your motor control system.
