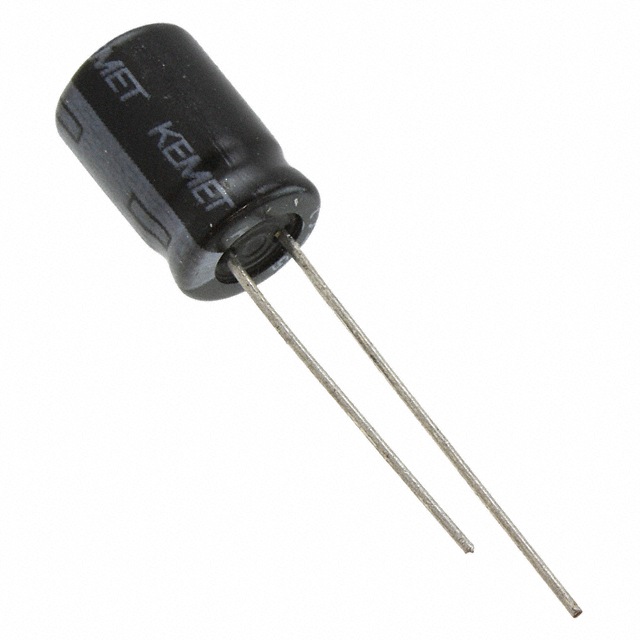

ESH225M400AG3AA

Active

KEMET

CAP ALUM 2.2UF 20% 400V RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP ALUM 2.2UF 20% 400V RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	ESH225M400AG3AA

Applications	General Purpose
Capacitance	2.2 µF
Height - Seated (Max) [Max]	0.492 in
Height - Seated (Max) [Max]	12.5 mm
Lead Spacing	3.5 mm
Lead Spacing	0.138 in
Lifetime @ Temp.	2000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	49.6 mA
Ripple Current @ Low Frequency	31 mA
Size / Dimension [diameter]	0.315 "
Size / Dimension [diameter]	8 mm
Tolerance	20 %
Voltage - Rated	400 V

Part	Voltage - Rated	Lead Spacing	Lead Spacing	Capacitance	Ripple Current @ Low Frequency	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Ripple Current @ High Frequency	Mounting Type	Package / Case	Size / Dimension [diameter]	Size / Dimension [diameter]	Lifetime @ Temp.	Polarization	Tolerance
KEMET ESH225M400AG3AA	400 V	3.5 mm	0.138 in	2.2 µF	31 mA	-25 °C	105 ░C	General Purpose	0.492 in	12.5 mm	49.6 mA	Through Hole	Radial Can	0.315 "	8 mm	2000 Hrs	Polar	20 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2.2 µF 400 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
