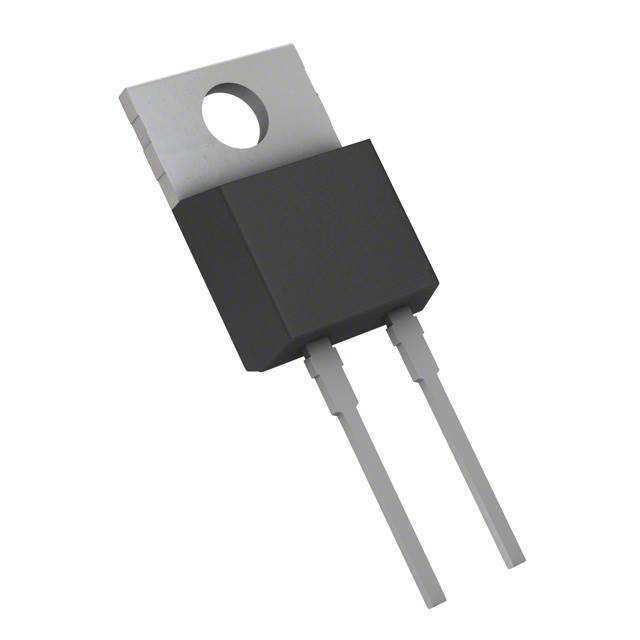

SDT08S60

Obsolete

Infineon Technologies

DIODE SIL CARB 600V 8A PGTO2202

Search across all available documentation for this part.

Obsolete

Infineon Technologies

DIODE SIL CARB 600V 8A PGTO2202

Technical Specifications

Parameters and characteristics for this part

Specification	SDT08S60

Capacitance @ Vr, F	280 pF
Current - Average Rectified (Io)	8 A
Current - Reverse Leakage @ Vr	300 µA
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	175 ░C
Operating Temperature - Junction [Min]	-55 C
Package / Case	TO-220-2
Reverse Recovery Time (trr)	0 ns
Speed	No Recovery Time
Supplier Device Package	PG-TO220-2-2
Technology	SiC (Silicon Carbide) Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	600 V
Voltage - Forward (Vf) (Max) @ If	1.7 V

Part	Capacitance @ Vr, F	Voltage - Forward (Vf) (Max) @ If	Mounting Type	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Reverse Leakage @ Vr	Reverse Recovery Time (trr)	Package / Case	Technology	Current - Average Rectified (Io)	Supplier Device Package	Speed	Voltage - DC Reverse (Vr) (Max) [Max]
Infineon Technologies SDT08S60	280 pF	1.7 V	Through Hole	175 ░C	-55 C	300 µA	0 ns	TO-220-2	SiC (Silicon Carbide) Schottky	8 A	PG-TO220-2-2	No Recovery Time	600 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode 600 V 8A Through Hole PG-TO220-2-2
