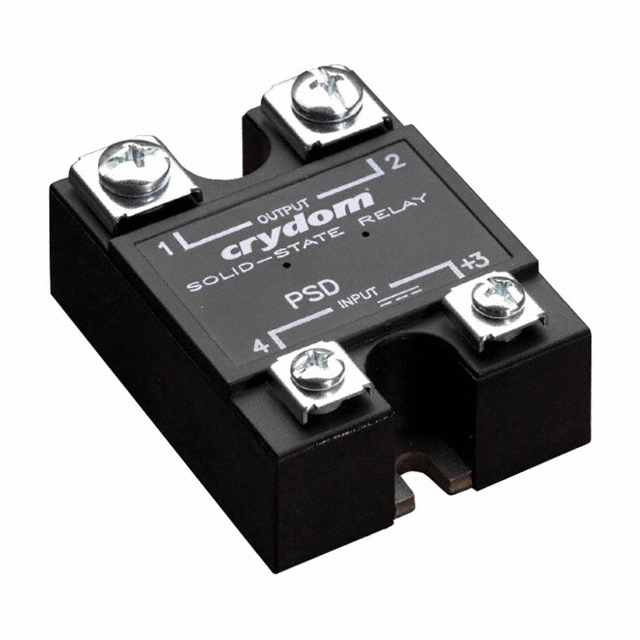

PSD4810
ObsoleteSensata-Crydom
SSR RELAY SPST-NO 10A 48-530V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsCE Declaration of Conformity
PSD4810
ObsoleteSensata-Crydom
SSR RELAY SPST-NO 10A 48-530V
Deep-Dive with AI
DocumentsCE Declaration of Conformity
Technical Specifications
Parameters and characteristics for this part
| Specification | PSD4810 |
|---|---|
| Approval Agency | CE, cURus |
| Load Current | 10 A |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -40 °C |
| Output Type | AC, Zero Cross |
| Package / Case | Hockey Puck |
| Termination Style | Screw Terminal |
| Voltage - Input [Max] | 32 V |
| Voltage - Input [Min] | 4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PSD481 Series
Solid State SPST-NO (1 Form A) Hockey Puck
