ATEPR-15-R-Z

Active

Menics

COMPLETE UNIT RED LED FLASHING

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ATEPR-15-R-Z

Active

Menics

COMPLETE UNIT RED LED FLASHING

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 208.00

Description

General part information

ATEPR-15 Series

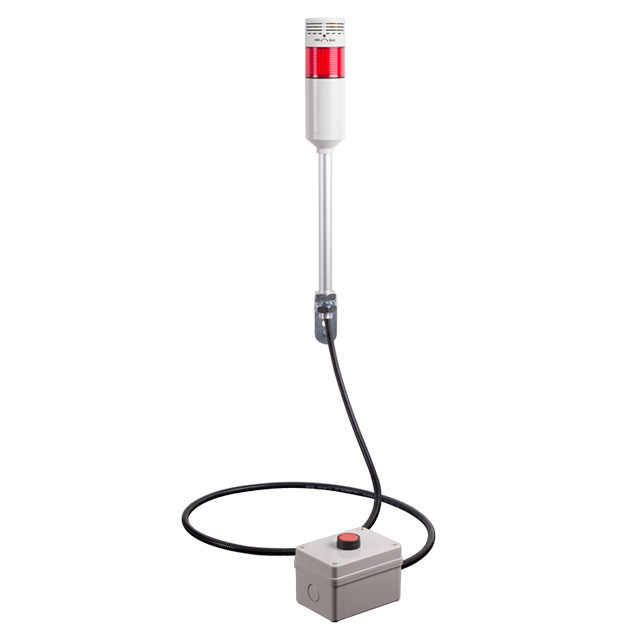

Stack Light Complete Unit Red LED Adjustable Volume, Pushbutton Control Cable with Connector

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ATEPR-15-R-Z	ATEPR-15 Series

Features	Pushbutton Control, Adjustable Volume	Pushbutton Control, Adjustable Volume
Function - Audible	Continuous	Continuous
Function - Lighting	Flashing	Steady, Flashing
Light Color	Red	Yellow, Red, Green, Blue, Clear
Number of Stacks	1	1 - 5
Operating Temperature [Max]	40 °C	40 °C
Operating Temperature [Min]	-15 °C	-15 °C
Termination Style	Cable with Connector	Cable with Connector
Type	Complete Unit	Complete Unit
Voltage - Supply	110 VAC/DC	110 VAC/DC

ATEPR-15 Series

COMPLETE UNIT YLW LED STEADY

Part	Voltage - Supply	Number of Stacks	Features	Operating Temperature [Min]	Operating Temperature [Max]	Function - Lighting	Light Color	Type	Termination Style	Function - Audible
Menics ATEPR-15-Y	110 VAC/DC	1	Pushbutton Control	-15 °C	40 °C	Steady	Yellow	Complete Unit	Cable with Connector
Menics ATEPR-15-RG-Z	110 VAC/DC	2	Adjustable Volume, Pushbutton Control	-15 °C	40 °C	Flashing, Steady	Green, Red	Complete Unit	Cable with Connector	Continuous
Menics ATEPR-15-RYGB-B	110 VAC/DC	4	Pushbutton Control	-15 °C	40 °C	Flashing, Steady	Blue, Green, Red, Yellow	Complete Unit	Cable with Connector	Continuous
Menics ATEPR-15-RYG-B	110 VAC/DC	3	Pushbutton Control	-15 °C	40 °C	Flashing, Steady	Green, Red, Yellow	Complete Unit	Cable with Connector	Continuous
Menics ATEPR-15-R-B	110 VAC/DC	1	Pushbutton Control	-15 °C	40 °C	Flashing	Red	Complete Unit	Cable with Connector	Continuous
Menics ATEPR-15-RG-B	110 VAC/DC	2	Pushbutton Control	-15 °C	40 °C	Flashing, Steady	Green, Red	Complete Unit	Cable with Connector	Continuous
Menics ATEPR-15-RG	110 VAC/DC	2	Pushbutton Control	-15 °C	40 °C	Flashing, Steady	Green, Red	Complete Unit	Cable with Connector
Menics ATEPR-15-RYG-Z	110 VAC/DC	3	Adjustable Volume, Pushbutton Control	-15 °C	40 °C	Flashing, Steady	Green, Red, Yellow	Complete Unit	Cable with Connector	Continuous
Menics ATEPR-15-RY-Z	110 VAC/DC	2	Adjustable Volume, Pushbutton Control	-15 °C	40 °C	Flashing, Steady	Red, Yellow	Complete Unit	Cable with Connector	Continuous
Menics ATEPR-15-RYGB-Z	110 VAC/DC	4	Adjustable Volume, Pushbutton Control	-15 °C	40 °C	Flashing, Steady	Blue, Green, Red, Yellow	Complete Unit	Cable with Connector	Continuous
