ATEPR-15-RG-B
ActiveMenics
COMPLETE UNIT GR/R FLASH 2STACK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ATEPR-15-RG-B
ActiveMenics
COMPLETE UNIT GR/R FLASH 2STACK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ATEPR-15-RG-B | ATEPR-15 Series |
|---|---|---|
| Features | Pushbutton Control | Pushbutton Control, Adjustable Volume |
| Function - Audible | Continuous | Continuous |
| Function - Lighting | Steady, Flashing | Steady, Flashing |
| Light Color | Red, Green | Yellow, Red, Green, Blue, Clear |
| Number of Stacks | 2 | 1 - 5 |
| Operating Temperature [Max] | 40 °C | 40 °C |
| Operating Temperature [Min] | -15 °C | -15 °C |
| Termination Style | Cable with Connector | Cable with Connector |
| Type | Complete Unit | Complete Unit |
| Voltage - Supply | 110 VAC/DC | 110 VAC/DC |
ATEPR-15 Series
COMPLETE UNIT YLW LED STEADY
| Part | Voltage - Supply | Number of Stacks | Features | Operating Temperature [Min] | Operating Temperature [Max] | Function - Lighting | Light Color | Type | Termination Style | Function - Audible |
|---|---|---|---|---|---|---|---|---|---|---|
Menics ATEPR-15-Y | 110 VAC/DC | 1 | Pushbutton Control | -15 °C | 40 °C | Steady | Yellow | Complete Unit | Cable with Connector | |
Menics ATEPR-15-RG-Z | 110 VAC/DC | 2 | Adjustable Volume, Pushbutton Control | -15 °C | 40 °C | Flashing, Steady | Green, Red | Complete Unit | Cable with Connector | Continuous |
Menics ATEPR-15-RYGB-B | 110 VAC/DC | 4 | Pushbutton Control | -15 °C | 40 °C | Flashing, Steady | Blue, Green, Red, Yellow | Complete Unit | Cable with Connector | Continuous |
Menics ATEPR-15-RYG-B | 110 VAC/DC | 3 | Pushbutton Control | -15 °C | 40 °C | Flashing, Steady | Green, Red, Yellow | Complete Unit | Cable with Connector | Continuous |
Menics ATEPR-15-R-B | 110 VAC/DC | 1 | Pushbutton Control | -15 °C | 40 °C | Flashing | Red | Complete Unit | Cable with Connector | Continuous |
Menics ATEPR-15-RG-B | 110 VAC/DC | 2 | Pushbutton Control | -15 °C | 40 °C | Flashing, Steady | Green, Red | Complete Unit | Cable with Connector | Continuous |
Menics ATEPR-15-RG | 110 VAC/DC | 2 | Pushbutton Control | -15 °C | 40 °C | Flashing, Steady | Green, Red | Complete Unit | Cable with Connector | |
Menics ATEPR-15-RYG-Z | 110 VAC/DC | 3 | Adjustable Volume, Pushbutton Control | -15 °C | 40 °C | Flashing, Steady | Green, Red, Yellow | Complete Unit | Cable with Connector | Continuous |
Menics ATEPR-15-RY-Z | 110 VAC/DC | 2 | Adjustable Volume, Pushbutton Control | -15 °C | 40 °C | Flashing, Steady | Red, Yellow | Complete Unit | Cable with Connector | Continuous |
Menics ATEPR-15-RYGB-Z | 110 VAC/DC | 4 | Adjustable Volume, Pushbutton Control | -15 °C | 40 °C | Flashing, Steady | Blue, Green, Red, Yellow | Complete Unit | Cable with Connector | Continuous |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 237.00 | |
Description
General part information
ATEPR-15 Series

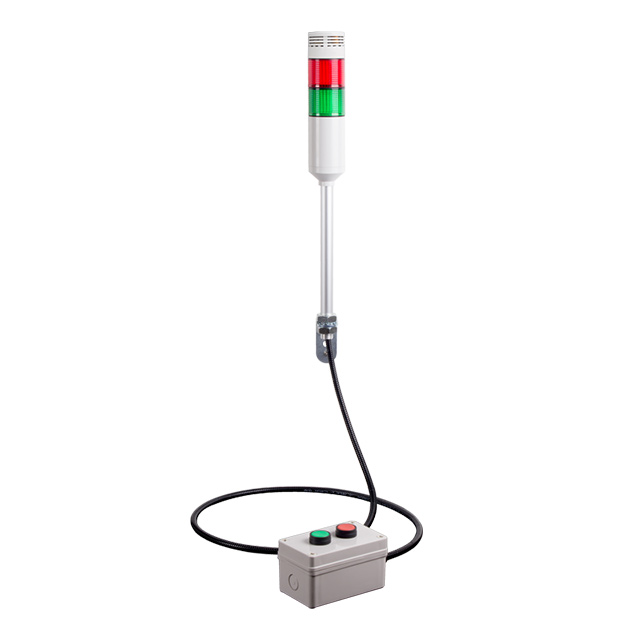

Stack Light Complete Unit Green, Red LED Pushbutton Control Cable with Connector
Documents
Technical documentation and resources
