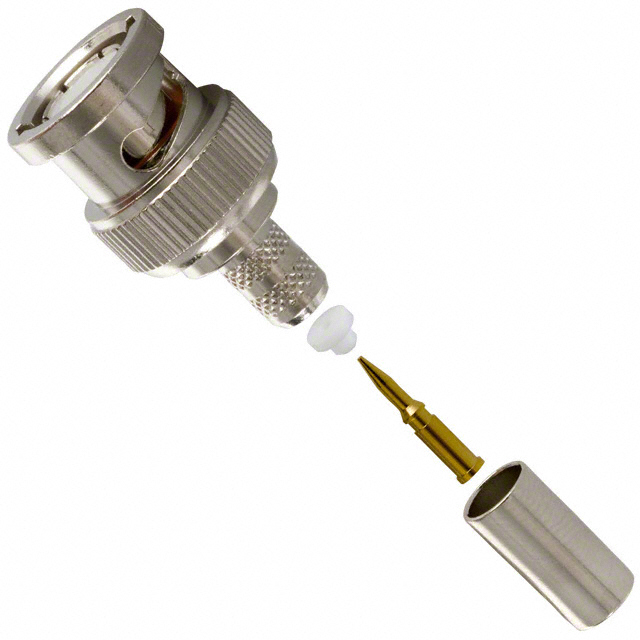

31-321-RFX

Active

Amphenol RF

CONN BNC PLUG STR 50 OHM CRIMP

Search across all available documentation for this part.

Active

Amphenol RF

CONN BNC PLUG STR 50 OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	31-321-RFX

Body Finish	Nickel
Body Material	Zinc Die Cast
Cable Group	140, 8263, 59B, 8279, 210, Belden 8241, RG-59, 62, 9209
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polyoxymethylene (POM) Acetal
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Contact, 1 Connector, 1 Insulator, 1 Ferrule
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Number of Ports	Shield Termination	Includes	Body Finish	Mating Cycles	Housing Color	Mounting Type	Insertion Loss	Cable Group	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Dielectric Material	Fastening Type	Frequency - Max [Max]	Impedance	Center Contact Plating	Contact Termination	Connector Type	Center Contact Material	Connector Style	Body Material
Amphenol RF 31-321-RFX	1	Crimp	1 Connector 1 Contact 1 Ferrule 1 Insulator	Nickel	500	Silver	Free Hanging (In-Line)	0.2 dB	140 210 59B 62 8263 8279 9209 Belden 8241 RG-59	-65 ░C	165 °C	500 V	Polyoxymethylene (POM) Acetal	Bayonet Lock	4 GHz	50 Ohms	Gold	Crimp	Male Pin Plug	Brass	BNC	Zinc Die Cast
Amphenol RF 31-321-1000	1	Crimp	1 Connector 1 Contact 1 Ferrule	Nickel	500	Silver	Free Hanging (In-Line)	0.2 dB	RG-59 Double Braid Belden 9231	-65 ░C	165 °C	500 V	Polytetrafluoroethylene (PTFE)	Bayonet Lock	4 GHz	50 Ohms	Gold	Crimp	Male Pin Plug	Brass	BNC	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
