101A041-3-0

Active

TE Connectivity Aerospace, Defense and Marine

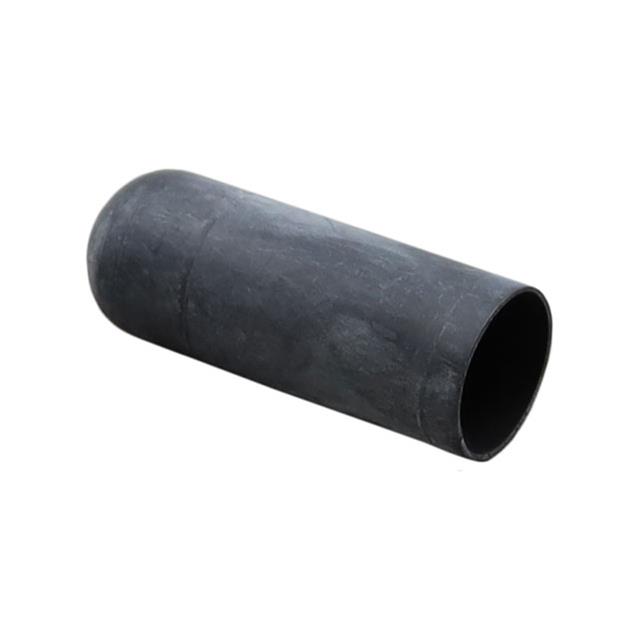

HEATSHRINK CAP SZ41 BLACK

Search across all available documentation for this part.

Active

TE Connectivity Aerospace, Defense and Marine

HEATSHRINK CAP SZ41 BLACK

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	101A041-3-0	101A041 Series

	-	-
Color	Black	Black
Large Diameter Recovered [diameter]	0.252 "	0.25 - 0.252 in
Large Diameter Recovered [diameter]	6.4 mm	6.35 - 6.4 mm
Large Diameter Supplied [diameter]	0.598 in	0.598 - 0.6 in
Large Diameter Supplied [diameter]	15.19 mm	15.19 - 15.24 mm
Material	Polyolefin (PO), Semi-Rigid	Polyolefin (PO), Flexible, Polyolefin (PO), Semi-Rigid
Shell Size - Insert	41	41
Total Length Recovered	40.64 mm	40.64 mm
Total Length Recovered	1.6 in	1.6 in
Type	Cap	Cap

FLEX POLY MOLDED PART

Part	Large Diameter Recovered [diameter]	Large Diameter Recovered [diameter]	Material	Shell Size - Insert	Large Diameter Supplied [diameter]	Large Diameter Supplied [diameter]	Type	Color	Total Length Recovered	Total Length Recovered
TE Connectivity Aerospace, Defense and Marine 101A041-4-02-0	6.35 mm	0.25 in	Polyolefin (PO), Flexible	41	15.24 mm	0.6 in	Cap	Black
TE Connectivity Aerospace, Defense and Marine 101A041-25/225-0
TE Connectivity Aerospace, Defense and Marine 101A041-3-0	6.4 mm	0.252 "	Polyolefin (PO), Semi-Rigid	41	15.19 mm	0.598 in	Cap	Black	40.64 mm	1.6 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Shrink Cap Black 41
