W30F1C-P04PFG0-5000

Active

ODU

ODU MINI-SNAP RT.ANGLE PLUG, STY

Search across all available documentation for this part.

Active

ODU

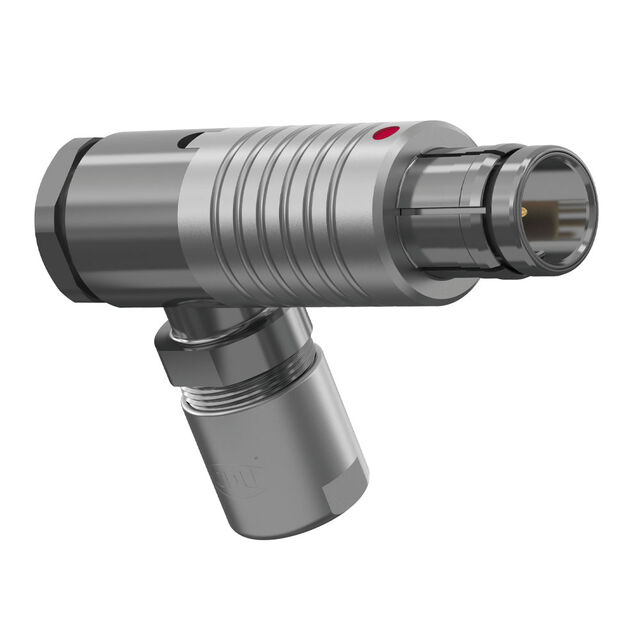

ODU MINI-SNAP RT.ANGLE PLUG, STY

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	W30F1C-P04PFG0-5000	W30F1C-P Series

Applications	Military, Medical, Industrial, Testing Equipment & Measurement	Military, Medical, Industrial, Testing Equipment & Measurement
Backshell Material, Plating	Brass, Chrome over Nickel	Brass, Chrome over Nickel
Cable Opening [Max] [diameter]	0.197 in	0.197 in
Cable Opening [Max] [diameter]	5 mm	5 mm
Cable Opening [Min] [diameter]	0.177 in	0.177 in
Cable Opening [Min] [diameter]	4.5 mm	4.5 mm
Color	Silver	Silver
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Current Rating (Amps)	7.5 A	7.5 A
Fastening Type	Push-Pull	Push-Pull
Features	Backshell	Backshell
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line), Right Angle	Free Hanging (In-Line), Right Angle
Number of Positions	4	4
Operating Temperature [Max]	120 °C	120 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	1	1
Primary Material	Metal	Metal
Shell Finish	Chrome over Nickel	Chrome over Nickel
Shell Material	Brass	Brass
Shell Size - Insert	0	0
Shielding	Unshielded	Unshielded
Termination	Crimp	Crimp
Voltage Rating	300 VDC	300 VDC

ODU MINI-SNAP RT.ANGLE PLUG, STY

Part	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Contact Material	Voltage Rating	Features	Mounting Type	Backshell Material, Plating	Color	Connector Type	Contact Finish - Mating	Ingress Protection	Current Rating (Amps)	Shielding	Applications	Shell Material	Orientation	Insert Material	Material Flammability Rating	Shell Size - Insert	Shell Finish	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Fastening Type	Primary Material	Termination
ODU W30F1C-P04MFG0-5000	0.197 in	0.177 in	5 mm	4.5 mm	Brass	300 VDC	Backshell	Free Hanging (In-Line), Right Angle	Brass, Chrome over Nickel	Silver	Male Pins, Plug	Gold	IP68 - Dust Tight, Waterproof	7.5 A	Unshielded	Industrial, Medical, Military, Testing Equipment & Measurement	Brass	1	Polyetheretherketone (PEEK)	UL94 V-0	0	Chrome over Nickel	-40 °C	120 °C	4	Push-Pull	Metal
ODU W30F1C-P04PFG0-5000	0.197 in	0.177 in	5 mm	4.5 mm	Brass	300 VDC	Backshell	Free Hanging (In-Line), Right Angle	Brass, Chrome over Nickel	Silver	Male Pins, Plug	Gold	IP68 - Dust Tight, Waterproof	7.5 A	Unshielded	Industrial, Medical, Military, Testing Equipment & Measurement	Brass	1	Polyetheretherketone (PEEK)	UL94 V-0	0	Chrome over Nickel	-40 °C	120 °C	4	Push-Pull	Metal	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 73.56

General part information

4 Position Circular Connector Plug, Male Pins Crimp

Technical documentation and resources

No documents available
