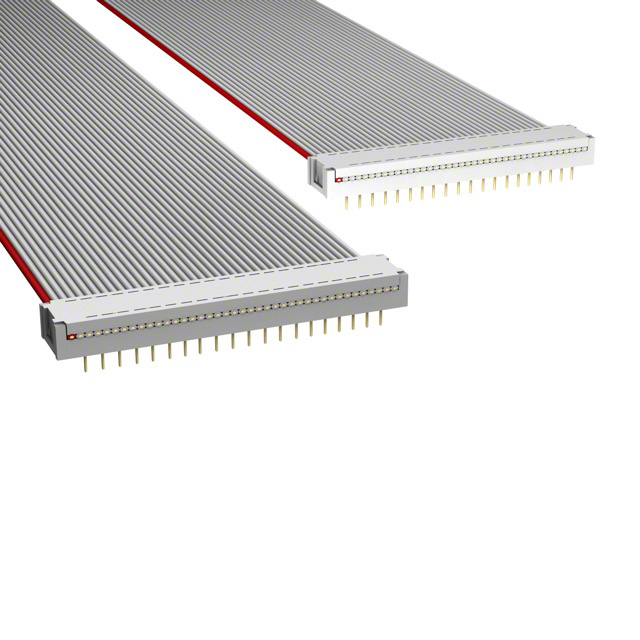

H8PPS-4006G

Active

Assmann WSW Components

DIP CABLE - HDP40S/AE40G/HDP40S

Search across all available documentation for this part.

Active

Assmann WSW Components

DIP CABLE - HDP40S/AE40G/HDP40S

Technical Specifications

Parameters and characteristics commom to parts in this series

DIP CABLE - HDP40S/AE40G/HDP40S

Part	Usage	Cable Termination	Shielding	Length [x]	Length [x]	Pitch - Cable	Pitch - Cable	Number of Rows	Connector Type	Pitch - Connector	Pitch - Connector	Contact Finish	Number of Positions	Length	Length	Length
Assmann WSW Components H8PPS-4018G	Board In, Socket (0.6")	IDC	Unshielded	457.2 mm	1.5 ft	0.05 "	1.27 mm	2	DIP to DIP, Reversed	0.1 in	2.54 mm	Tin	40
Assmann WSW Components H8PPS-4036G	Board In, Socket (0.6")	IDC	Unshielded	914.4 mm	3 ft	0.05 "	1.27 mm	2	DIP to DIP, Reversed	0.1 in	2.54 mm	Tin	40
Assmann WSW Components H8PPS-4006G	Board In, Socket (0.6")	IDC	Unshielded			0.05 "	1.27 mm	2	DIP to DIP, Reversed	0.1 in	2.54 mm	Tin	40	152.4 mm	6 "	0.5 '

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

40 Position Cable Assembly Rectangular DIP to DIP, Reversed 0.500' (152.40mm, 6.00")
