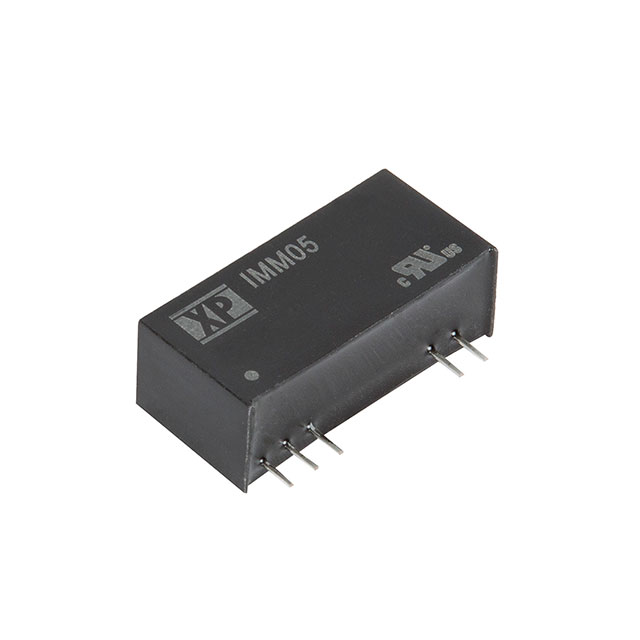

IMM0512S05
ActiveXP POWER
ISOLATED THROUGH HOLE DC/DC CONVERTER, MEDICAL, SIP, 2:1, 5 W, 1 OUTPUT, 5 V
Deep-Dive with AI
Search across all available documentation for this part.
IMM0512S05
ActiveXP POWER
ISOLATED THROUGH HOLE DC/DC CONVERTER, MEDICAL, SIP, 2:1, 5 W, 1 OUTPUT, 5 V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IMM0512S05 |
|---|---|
| Applications | Medical |
| Approval Agency | TUV, CSA, UL, CB |
| Current - Output (Max) [Max] | 1 A |
| Features | Remote On/Off, OCP, SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -20 °C |
| Package / Case | 9-SIP Module |
| Package / Case | 5 Leads |
| Power (Watts) | 5 W |
| Size / Dimension [x] | 1.02 in |
| Size / Dimension [x] | 26 mm |
| Size / Dimension [y] | 0.36 " |
| Size / Dimension [y] | 9.3 mm |
| Size / Dimension [z] | 12.5 mm |
| Size / Dimension [z] | 0.49 in |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 18 V |
| Voltage - Input (Min) [Min] | 9 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
IMM0512 Series
The IMM05 series of dc-dc converter offers an ultra compact 5W solution facilitating an isolation barrier between input and output with low leakage current required for medical BF & CF applications.
