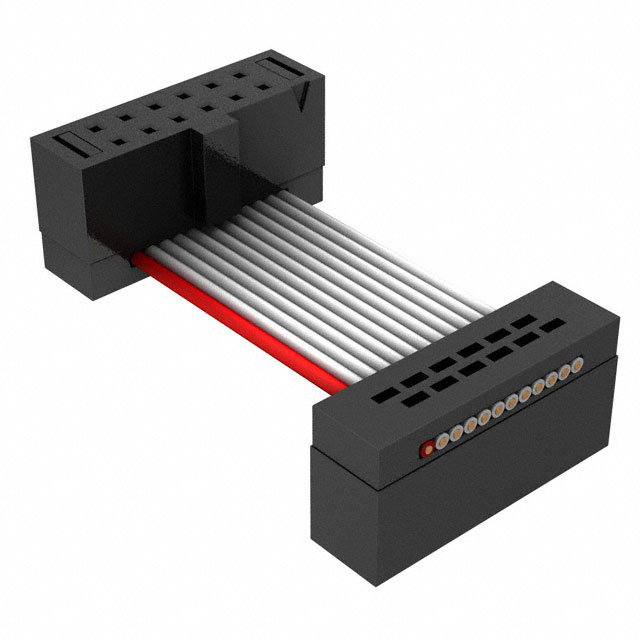

Specification	FFSD-06-D-03.20-01-N-RW-R

Cable Termination	IDC
Color	Gray, Ribbon
Connector Type	Reversed, Socket to Socket
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Features	Polarizing Key, Reverse Wiring
Length	0.267 ft
Number of Positions	12
Number of Rows	2
Pitch - Cable	0.025 in
Pitch - Connector	0.05 in
Shielding	Unshielded

FFSD-06 Series

...

Part	Number of Rows	Contact Finish Thickness	Pitch - Cable	Length	Connector Type	Pitch - Connector	Number of Positions	Shielding	Cable Termination	Contact Finish	Features	Color	Connector Pin Count
Samtec Inc. FFSD-06-D-20.00-01-N-SR	2	10 Ąin	0.025 in	1.67 ft	Socket to Socket	0.05 in	12	Unshielded	IDC	Gold	Polarizing Key Strain Relief	Gray Ribbon
Samtec Inc. FFSD-06-S-06.75-01-S-N	2	30 µin	0.025 in	0.563 ft	Socket to Cable	0.05 in	12	Unshielded	IDC	Gold	Polarizing Key	Gray Ribbon
Samtec Inc. FFSD-06-D-300.00-01-N	2	10 Ąin	0.025 in	25 ft	Socket to Socket	0.05 in	12	Unshielded	IDC	Gold	Polarizing Key	Gray Ribbon
Samtec Inc. FFSD-06-S-36.00-01-F-N	2	3 µin	0.025 in	3 ft	Socket to Cable	0.05 in	12	Unshielded	IDC	Gold	Polarizing Key	Gray Ribbon
Samtec Inc. FFSD-06-S-01.00-01-F-N	2	3 µin	0.025 in	0.083 ft	Socket to Cable	0.05 in	12	Unshielded	IDC	Gold	Polarizing Key	Gray Ribbon
Samtec Inc. FFSD-06-S-90.00-01-N	2	10 Ąin	0.025 in	7.5 ft	Socket to Cable	0.05 in	12	Unshielded	IDC	Gold	Polarizing Key	Gray Ribbon
Samtec Inc. FFSD-06-D-18.36-01-N-D14-R	2	10 Ąin	0.025 in		Socket to Socket	0.05 in	12	Unshielded	IDC	Gold	Polarizing Key	Gray Ribbon	3 Pin
Samtec Inc. FFSD-06-D-02.13-01-N	2	10 Ąin	0.025 in	0.178 ft	Socket to Socket	0.05 in	12	Unshielded	IDC	Gold	Polarizing Key	Gray Ribbon
Samtec Inc. FFSD-06-S-05.00-01-N	2	10 Ąin	0.025 in	0.417 ft	Socket to Cable	0.05 in	12	Unshielded	IDC	Gold	Polarizing Key	Gray Ribbon
Samtec Inc. FFSD-06-S-10.00-01-N	2	10 Ąin	0.025 in	0.833 ft	Socket to Cable	0.05 in	12	Unshielded	IDC	Gold	Polarizing Key	Gray Ribbon
