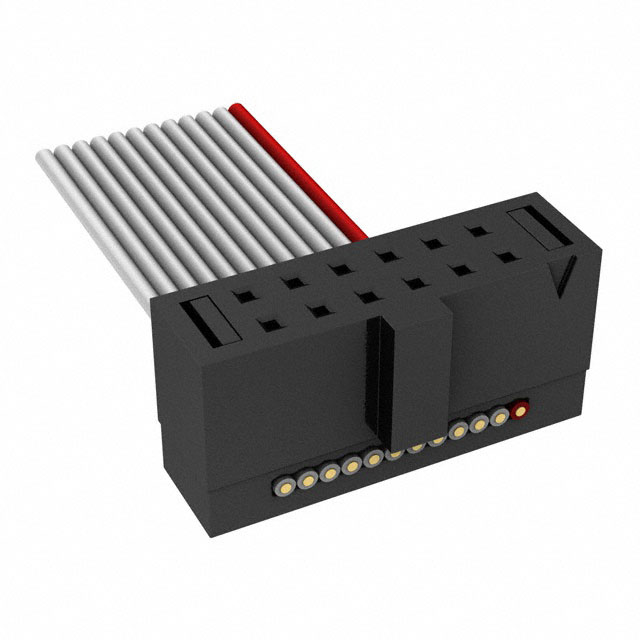

FFSD-06-S-90.00-01-N

Active

Samtec Inc.

.050 X .050 C.L. FEMALE IDC ASSE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FFSD-06-S-90.00-01-N

Active

Samtec Inc.

.050 X .050 C.L. FEMALE IDC ASSE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FFSD-06-S-90.00-01-N

Cable Termination	IDC
Connector Type	Socket to Cable
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Polarizing Key
Length	90 in
Length	2.29 m
Number of Positions	12
Number of Rows	2
Pitch - Cable	0.64 mm
Pitch - Cable [x]	0.025 in
Pitch - Connector	0.05 in
Pitch - Connector	1.27 mm
Shielding	Unshielded

FFSD-06 Series

...

Part	Connector Type	Pitch - Cable [x]	Pitch - Cable	Contact Finish	Number of Rows	Length	Length	Shielding	Features	Number of Positions	Cable Termination	Pitch - Connector	Pitch - Connector	Contact Finish Thickness	Contact Finish Thickness	Length [x]	Length [x]	Length [x]	Length	Length
Samtec Inc. FFSD-06-D-20.00-01-N-SR	Socket to Socket	0.025 in	0.64 mm	Gold	2	508 mm	1.67 ft	Unshielded	Polarizing Key Strain Relief	12	IDC	0.05 in	1.27 mm	10 Áin	0.25 Ám
Samtec Inc. FFSD-06-S-06.75-01-S-N	Socket to Cable	0.025 in	0.64 mm	Gold	2			Unshielded	Polarizing Key	12	IDC	0.05 in	1.27 mm	30 Áin	0.76 Ám	0.563 ft	6.75 "	171.45 mm
Samtec Inc. FFSD-06-D-06.00-01-N	Socket to Socket	0.025 in	0.64 mm	Gold	2	152.4 mm		Unshielded	Polarizing Key	12	IDC	0.05 in	1.27 mm	10 Áin	0.25 Ám				6 "	0.5 '
Samtec Inc. FFSD-06-D-300.00-01-N	Socket to Socket	0.025 in	0.64 mm	Gold	2	7.62 m	25 ft	Unshielded	Polarizing Key	12	IDC	0.05 in	1.27 mm	10 Áin	0.25 Ám
Samtec Inc. FFSD-06-D-100.00-01-N	Socket to Socket	0.025 in	0.64 mm	Gold	2	2.54 m	8.33 ft	Unshielded	Polarizing Key	12	IDC	0.05 in	1.27 mm	10 Áin	0.25 Ám
Samtec Inc. FFSD-06-S-90.00-01-N	Socket to Cable	0.025 in	0.64 mm	Gold	2	2.29 m	90 in	Unshielded	Polarizing Key	12	IDC	0.05 in	1.27 mm	10 Áin	0.25 Ám
Samtec Inc. FFSD-06-D-06.00-01-F-N-SR	Socket to Socket	0.025 in	0.64 mm	Gold	2	152.4 mm		Unshielded	Polarizing Key Strain Relief	12	IDC	0.05 in	1.27 mm	3 Áin	0.076 Ám				6 "	0.5 '
Samtec Inc. FFSD-06-D-18.36-01-N-D14-R	Socket to Socket (3)	0.025 in	0.64 mm	Gold	2			Unshielded	Polarizing Key	12	IDC	0.05 in	1.27 mm	10 Áin	0.25 Ám
Samtec Inc. FFSD-06-D-02.13-01-N	Socket to Socket	0.025 in	0.64 mm	Gold	2	54.1 mm		Unshielded	Polarizing Key	12	IDC	0.05 in	1.27 mm	10 Áin	0.25 Ám	0.178 '			2.13 "
Samtec Inc. FFSD-06-S-05.00-01-N	Socket to Cable	0.025 in	0.64 mm	Gold	2			Unshielded	Polarizing Key	12	IDC	0.05 in	1.27 mm	10 Áin	0.25 Ám	0.417 '	5 "	127 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

FFSD-06 Series

12 Position Cable Assembly Rectangular Socket to Cable 7.50' (2.29m)

Documents

Technical documentation and resources
