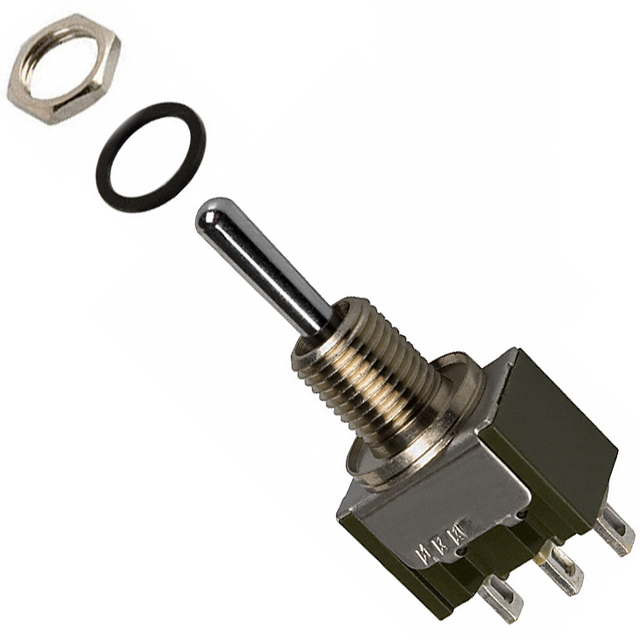

SWITCH TOGGLE ON NONE ON SPDT SMALL BAT LEVER SOLDER LUG 6A 250VAC 30VDC PANEL MOUNT WITH THREADS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M2012SD3W01

Obsolete

NKK Switches

SWITCH TOGGLE ON NONE ON SPDT SMALL BAT LEVER SOLDER LUG 6A 250VAC 30VDC PANEL MOUNT WITH THREADS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M2012SD3W01

Actuator Material	Brass, Chrome Plated
Actuator Type	Standard Round
Bushing Thread	1/4-40
Circuit	SPDT
Current Rating (Amps)	4 A, 6 A
Electrical Life	25000 Steps
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	6.5 mm
Switch Function	On-On
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

M2012SD Series

Part	Switch Function	Current Rating (Amps)	Circuit	Features	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Bushing Thread	Voltage Rating - DC	Electrical Life	Illumination	Actuator Material	Actuator Type	Termination Style	Actuator Length [x]
NKK Switches M2012SD8G01	On-On	0.4 VA	SPDT	Epoxy Sealed Terminals	-30 ░C	85 °C	IP67 - Dust Tight Waterproof	28 V	6.5 mm	M6 x 0.75	28 V	25000 Steps	Non-Illuminated	Brass Chrome Plated	Standard Round	Solder Lug
NKK Switches M2012SD3W01-CA	On-On	4 A 6 A	SPDT	Black Cap	-30 ░C	85 °C	IP67 - Dust Tight Waterproof	125 V	6.5 mm	1/4-40	30 V	25000 Steps	Non-Illuminated	Brass Chrome Plated	Standard Round with Cap	Solder Lug	13.1 mm
NKK Switches M2012SD3G03	On-On	0.4 VA	SPDT	Epoxy Sealed Terminals	-30 ░C	85 °C	IP67 - Dust Tight Waterproof	28 V	6.5 mm	1/4-40	28 V	50000 Cycles	Non-Illuminated	Brass Chrome Plated	Standard Round	PC Pin
NKK Switches M2012SD3W01-BB	On-On	4 A 6 A	SPDT	White Cap	-30 ░C	85 °C	IP67 - Dust Tight Waterproof	125 V	6.5 mm	1/4-40	30 V	25000 Steps	Non-Illuminated	Brass Chrome Plated	Standard Round with Cap	Solder Lug	13.5 mm
NKK Switches M2012SD3W01-BA	On-On	4 A 6 A	SPDT	Black Cap	-30 ░C	85 °C	IP67 - Dust Tight Waterproof	125 V	6.5 mm		30 V	25000 Steps	Non-Illuminated	Brass Chrome Plated	Standard Round with Cap	Solder Lug
NKK Switches M2012SD3W01	On-On	4 A 6 A	SPDT	Epoxy Sealed Terminals	-30 ░C	85 °C	IP67 - Dust Tight Waterproof	125 V	6.5 mm	1/4-40	30 V	25000 Steps	Non-Illuminated	Brass Chrome Plated	Standard Round	Solder Lug
NKK Switches M2012SD3G03-BA	On-On	0.4 VA	SPDT	Black Cap	-30 ░C	85 °C	IP67 - Dust Tight Waterproof	28 V	6.5 mm	1/4-40	28 V	50000 Cycles	Non-Illuminated	Brass Chrome Plated	Standard Round with Cap	PC Pin	13.5 mm
