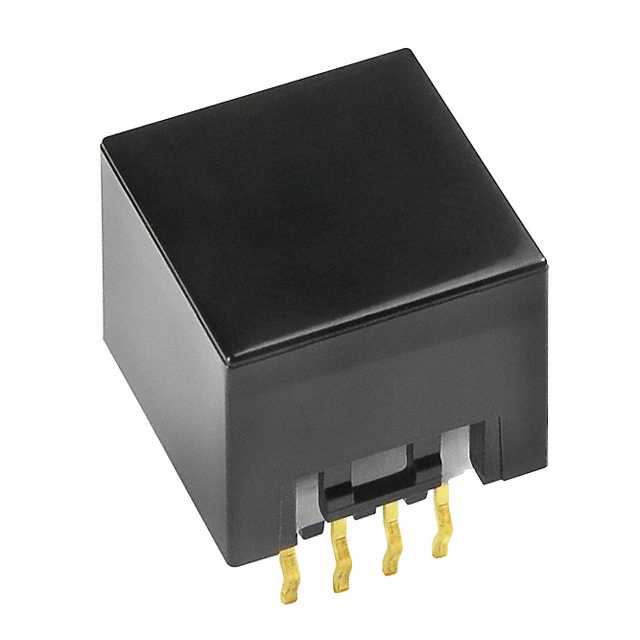

NP0115HG03NN-A

Obsolete

NKK Switches

SWITCH PUSH SPST-NO 0.4VA 28V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

NP0115HG03NN-A

Obsolete

NKK Switches

SWITCH PUSH SPST-NO 0.4VA 28V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NP0115HG03NN-A

Actuator Marking	No Marking
Actuator Type	Button, Square
Circuit	SPST-NO
Color - Actuator/Cap	Black
Current Rating (Amps)	0.4 VA
Electrical Life	500000 Cycles
Mechanical Life	500000 Cycles
Mounting Type	Through Hole
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Switch Function	Off-Mom
Termination Style	PC Pin
Type	Standard
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

NP0115H Series

Part	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Type	Termination Style	Current Rating (Amps)	Illumination Voltage (Nominal)	Circuit	Color - Actuator/Cap	Voltage Rating - DC	Electrical Life	Mechanical Life	Voltage Rating - AC	Illumination Type, Color	Actuator Marking	Switch Function	Actuator Type
NKK Switches NP0115HG03LC-JC	Through Hole	50 °C	-25 °C	Illuminated Standard	PC Pin	0.4 VA	2 VDC	SPST-NO	Clear (Red Filter/Diffuser)	28 V	500000 Cycles	500000 Cycles	28 V	LED Red	No Marking	Off-Mom	Button Square
NKK Switches NP0115HG03LCF-JCF11	Through Hole	50 °C	-25 °C	Illuminated Standard	PC Pin	0.4 VA	2 VDC 3.5 VDC	SPST-NO	Green Red	28 V	500000 Cycles	500000 Cycles	28 V	Green/Red LED	ON/OFF	Off-Mom	Alternating Legend Button Square
NKK Switches NP0115HG03NN-A	Through Hole	70 °C	-25 °C	Standard	PC Pin	0.4 VA		SPST-NO	Black	28 V	500000 Cycles	500000 Cycles	28 V		No Marking	Off-Mom	Button Square
NKK Switches NP0115HG03LC	Through Hole	50 °C	-25 °C	Illuminated Standard	PC Pin	0.4 VA	2 VDC	SPST-NO		28 V	500000 Cycles	500000 Cycles	28 V	LED Red	No Marking	Off-Mom	Square Button (Not Included)
NKK Switches NP0115HG03LCF-JCF13	Through Hole	50 °C	-25 °C	Illuminated Standard	PC Pin	0.4 VA	2 VDC 3.5 VDC	SPST-NO	Green Red	28 V	500000 Cycles	500000 Cycles	28 V	Green/Red LED	START/STOP (Alternating)	Off-Mom	Alternating Legend Button Square
NKK Switches NP0115HG03LCF-JB	Through Hole	50 °C	-25 °C	Illuminated Standard	PC Pin	0.4 VA	2 VDC 3.5 VDC	SPST-NO	Clear	28 V	500000 Cycles	500000 Cycles	28 V	Green/Red LED	No Marking	Off-Mom	Button Square
NKK Switches NP0115HG03LCF-JCF14	Through Hole	50 °C	-25 °C	Illuminated Standard	PC Pin	0.4 VA	2 VDC 3.5 VDC	SPST-NO	Green Red	28 V	500000 Cycles	500000 Cycles	28 V	Green/Red LED	OPEN/CLOSE (Alternating)	Off-Mom	Alternating Legend Button Square
NKK Switches NP0115HG03LD	Through Hole	50 °C	-25 °C	Illuminated Standard	PC Pin	0.4 VA	2.1 VDC	SPST-NO		28 V	500000 Cycles	500000 Cycles	28 V	Amber LED	No Marking	Off-Mom	Square Button (Not Included)
NKK Switches NP0115HG03LCF	Through Hole	50 °C	-25 °C	Illuminated Standard	PC Pin	0.4 VA	2 VDC 3.5 VDC	SPST-NO		28 V	500000 Cycles	500000 Cycles	28 V	Green/Red LED	No Marking	Off-Mom	Square Button (Not Included)
NKK Switches NP0115HG03LCF-JCF12	Through Hole	50 °C	-25 °C	Illuminated Standard	PC Pin	0.4 VA	2 VDC 3.5 VDC	SPST-NO	Green Red	28 V	500000 Cycles	500000 Cycles	28 V	Green/Red LED	ON/OFF	Off-Mom	Alternating Legend Button Square
