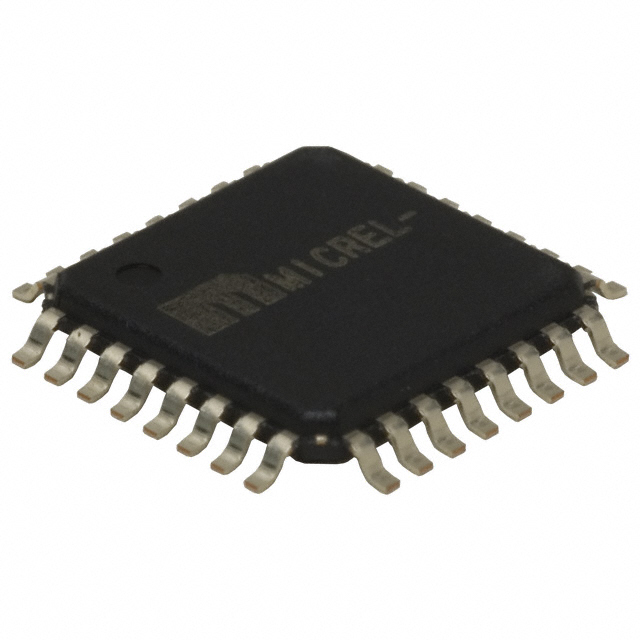

SY100EP451LTGTR
ActiveMicrochip Technology
IC FF D-TYPE SNGL 6BIT 32TQFP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SY100EP451LTGTR
ActiveMicrochip Technology
IC FF D-TYPE SNGL 6BIT 32TQFP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | SY100EP451LTGTR | 100EP451 Series |
|---|---|---|
| Clock Frequency | 3 GHz | 3 GHz |
| Current - Quiescent (Iq) | 120 mA | 120 mA |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Bits per Element | 6 | 6 |
| Number of Elements | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Type | Complementary | Complementary |
| Package / Case | 32-TQFP | 32-TQFP |
| Supplier Device Package | 32-TQFP (7x7) | 32-TQFP (7x7) |
| Trigger Type | Positive Edge | Positive Edge |
| Type | D-Type | D-Type |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
100EP451 Series
IC FF D-TYPE SGL 6-BIT 32-TQFP
| Part | Mounting Type | Output Type | Supplier Device Package | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Number of Elements | Current - Quiescent (Iq) | Number of Bits per Element | Type | Clock Frequency | Trigger Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology SY100EP451LTG | Surface Mount | Complementary | 32-TQFP (7x7) | 32-TQFP | 85 °C | -40 °C | 1 | 120 mA | 6 | D-Type | 3 GHz | Positive Edge |
Microchip Technology SY100EP451LTGTR | Surface Mount | Complementary | 32-TQFP (7x7) | 32-TQFP | 85 °C | -40 °C | 1 | 120 mA | 6 | D-Type | 3 GHz | Positive Edge |
Description
General part information
100EP451 Series
Flip Flop 1 Element D-Type 6 Bit Positive Edge 32-TQFP
