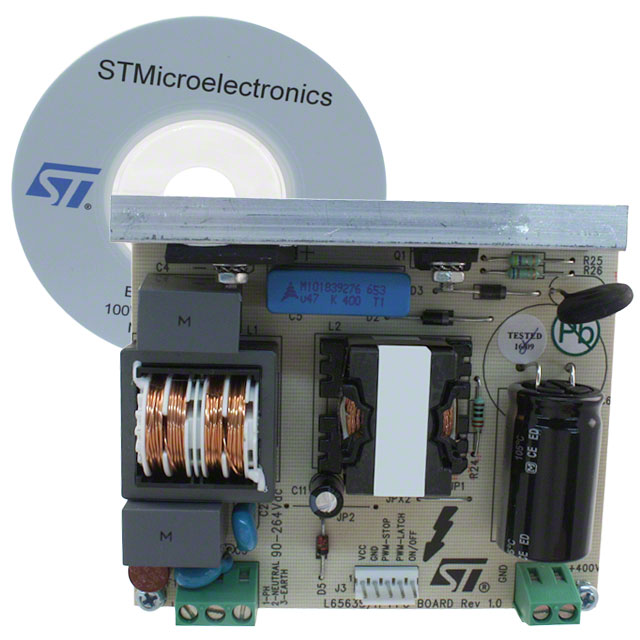

EVL6563S-100W

Active

STMicroelectronics

EVAL BOARD, 100W, PFC CONTROLLER ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

STMicroelectronics

EVAL BOARD, 100W, PFC CONTROLLER ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	EVL6563S-100W

Contents	Board(s)
Embedded	False
Function	Power Factor Correction
Primary Attributes	100W Power Factor Correction and Preregulator Combination
Secondary Attributes	Transition Mode, Active Tracking Boost Function
Supplied Contents	Board(s)
Type	Power Management
Utilized IC / Part	L6563

Part	Supplied Contents	Utilized IC / Part	Embedded	Function	Type	Contents	Primary Attributes	Secondary Attributes
STMicroelectronics EVL6563H-250W	Board(s)	L6563		Power Factor Correction	Power Management
STMicroelectronics EVL6563S-100W	Board(s)	L6563		Power Factor Correction	Power Management	Board(s)	100W Power Factor Correction and Preregulator Combination	Active Tracking Boost Function Transition Mode

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 85.35
Newark	Each	1	$ 89.78

General part information

L6563 Power Factor Correction Power Management Evaluation Board
