5504FE 008U500
ActiveMULTICONDUCTOR CABLE, SECURITY AUDIO, SHIELDED, 6 CONDUCTOR, 22 AWG, 500 FT, 152.4 M
5504FE 008U500
ActiveMULTICONDUCTOR CABLE, SECURITY AUDIO, SHIELDED, 6 CONDUCTOR, 22 AWG, 500 FT, 152.4 M
Description
General part information
5504FE Series

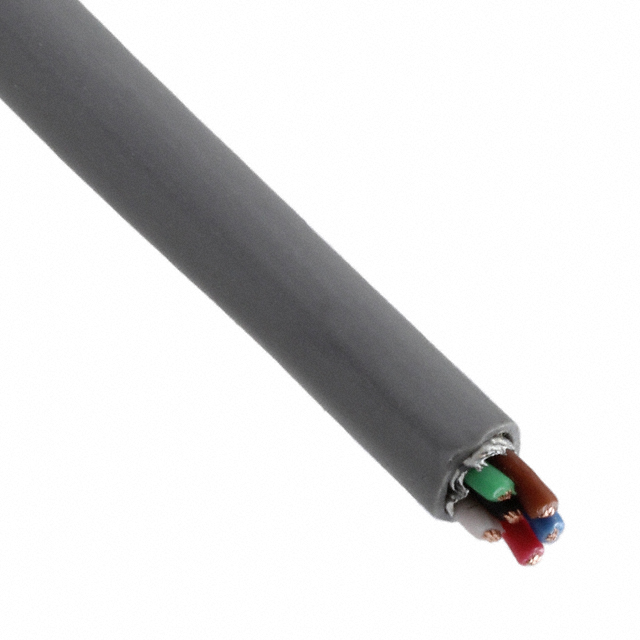

The 5504FE 008U500 from Belden is a Security and Sound Cable, Riser-CMR, with six 22 AWG stranded (7x30) bare copper conductors, polypropylene (PP) insulation, Beldfoil® aluminum-polyester tape shield (100% coverage), 24 AWG tinned copper drain wire, and a grey PVC outer jacket with ripcord.
Technical Specifications
Parameters and characteristics for this part
| Specification | 5504FE 008U500 |
|---|---|
| Cable Type | Conductor, Multi |
| Conductor Insulation | Polypropylene (PP) |
| Conductor Material | Copper, Bare |
| Conductor Strand Count | 7 Strands |
| Conductor Strand Gauge | 30 |
| Features | Rip Cord, Drain Wire |
| Jacket (Insulation) Diameter | 0.172 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC), Riser |
| Jacket (Insulation) Thickness | 0.017 in |
| Jacket Color | Gray |
| Length | 500 ft |
| Number of Conductors | 6 |
| Operating Temperature (Max) | 75 °C |
| Operating Temperature (Min) | -20 °C |
| Ratings | UL, CMR, Style |
| Shield Coverage | 100 % |
| Shield Material | Aluminum |
| Shield Type | Foil |
| Usage | Alarm, Sound, Security |
| Wire Gauge | 22 AWG |
