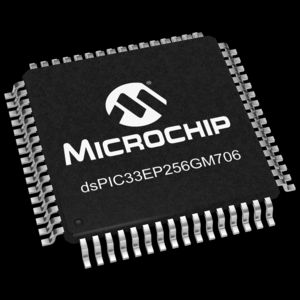

DSPIC33EP256GM706T-I/PT

Active

Microchip Technology

70 MIPS, MOTOR CONTROL, OPAMPS, CAN

Find alt

Alpha

DSPIC33EP256GM706T-I/PT

Active

Microchip Technology

70 MIPS, MOTOR CONTROL, OPAMPS, CAN

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

DSPIC33EP256GM706 Series

Microchip’s dsPIC33E family of digital signal controllers (DSCs) features a 70 MIPS dsPIC® DSC core with integrated DSP and enhanced on-chip peripherals. These DSCs enable the design of high-performance, precision motor control systems that are more energy efficient, quieter in operation, have a great range and extended life. They can be used to control brushless DC, permanent magnet synchronous, AC induction and stepper motors. These devices are also ideal for high-performance general purpose applications.

Technical Specifications

Parameters and characteristics for this part

Specification	DSPIC33EP256GM706T-I/PT

A/D Channels	30 count
A/D Resolution (bits)	12 bit, 10 bit
Connectivity	CANbus, UART, IrDA, USART, I2C, LINbus, SPI, QEI
Core Processor	dsPIC
Core Size (Bit Width)	16 Bit
Mounting Type	Surface Mount
Number of I/O	53
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Oscillator Type	Internal
Package / Case	64-TQFP
Package Length	10 mm
Package Name	64-TQFP
Package Width	10 mm
Peripherals	PWM, Motor Control PWM, POR, Reset, WDT, I2S, Brown-out Detect, DMA
Program Memory Depth	85.5 K
Program Memory Size	256 KB
Program Memory Type	FLASH
Program Memory Width	24
RAM Size Depth	32 K
RAM Size Width	8 bit
Speed	70 MIPs
Type	Digital Signal Controllers

DSPIC33EP256GM706 Series

70 MIPS, Motor Control, OpAmps, CAN

Part	Core Processor	Type	Peripherals	Connectivity	Speed	Program Memory Width	Program Memory Size	Program Memory Depth	Core Size (Bit Width)	Oscillator Type	Operating Temperature (Max)	Operating Temperature (Min)	Program Memory Type	Package Width	Package Name	Package Length	Package / Case	RAM Size Width	RAM Size Depth	Number of I/O	Mounting Type	A/D Channels	A/D Resolution (bits)	Voltage - Supply (Vcc/Vdd) Maximum	Voltage - Supply (Vcc/Vdd) Minimum	Grade	Qualification
Microchip Technology DSPIC33EP256GM706T-I/PT	dsPIC	Digital Signal Controllers	Brown-out Detect DMA I2S Motor Control PWM POR PWM Reset WDT	CANbus I2C IrDA LINbus QEI SPI UART USART	70 MIPs	24	256 KB	85.5 K	16 Bit	Internal	85 °C	-40 °C	FLASH	10 mm	64-TQFP	10 mm	64-TQFP	8 bit	32 K	53	Surface Mount	30 count	10 bit 12 bit
Microchip Technology DSPIC33EP256GM706-I/PT	dsPIC	Digital Signal Controllers	Brown-out Detect DMA I2S Motor Control PWM POR PWM Reset WDT	CANbus I2C IrDA LINbus QEI SPI UART USART	70 MIPs	24	256 KB	85.5 K	16 Bit	Internal	85 °C	-40 °C	FLASH	10 mm	64-TQFP	10 mm	64-TQFP	8 bit	32 K	53	Surface Mount	30 count	10 bit 12 bit	3.6 V	3 V
Microchip Technology DSPIC33EP256GM706-H/PT	dsPIC		Brown-out Detect DMA I2S Motor Control PWM POR PWM Reset WDT	CANbus I2C IrDA LINbus QEI SPI UART USART		24	256 KB	85.5 K	16 Bit	Internal	150 °C	-40 °C	FLASH	9 mm	64-VQFN	9 mm	64-VFQFN Exposed Pad	8 bit	32 K	53	Surface Mount	30 count	10 bit 12 bit			Automotive	AEC-Q100

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

DSPIC33EP256GM706T-I/PT | Datasheet

dsPIC33EPXXXGM3XX/6XX/7XX Family Silicon Errata and Data Sheet Clarification

Safeguarding Flash Memory Self-Write Operations

Sinusoidal Control of PMSM Motors with dsPIC30F / dsPIC33F/ dsPIC33E DSC

Sensorless Field Oriented Control (FOC) for a Permanent Magnet Synchronous Motor (PMSM) Using a PLL Estimator and Field Weakening (FW)

Sensorless Field Oriented Control of a PMSM using a Sliding Mode Observer (SMO)

dsPIC33EPXXXGM3XX/6XX/7XX Datasheet
