Q-2K032000M060i

Active

Amphenol Custom Cable

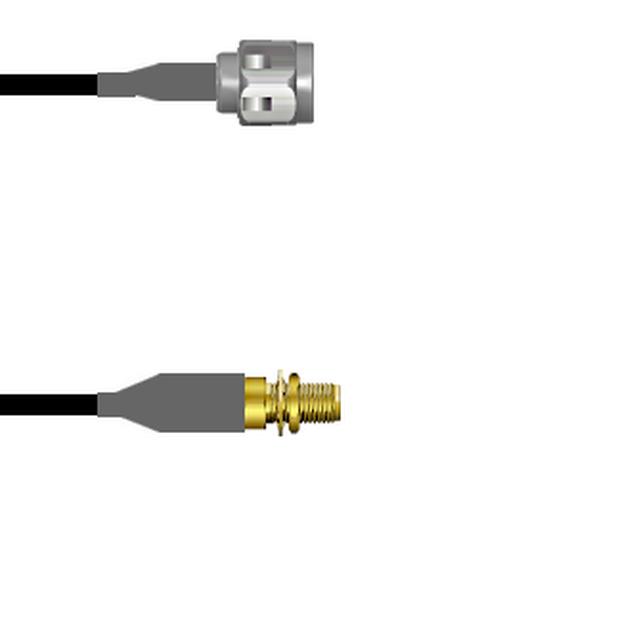

CBL ASSY SMA-NTYPE JACK-PLUG 5'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2K032000M060i

Active

Amphenol Custom Cable

CBL ASSY SMA-NTYPE JACK-PLUG 5'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2K032000M060i

1st Connector	SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	LMR 240
Color	Black
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	5 ft
Length	1.5 m
Length	5 '
Overall Impedance	50 Ohms
Style	SMA to N-Type

Q-2K0320 Series

Part	Color	Frequency - Max [Max]	1st Connector Mounting Type	1st Connector Mounting Feature	2nd Contact Gender	1st Connector	Features	2nd Connector	Cable Type	Length	Length	Length	Style	2nd Connector Mounting Type	1st Contact Gender	Overall Impedance
Amphenol Custom Cable Q-2K032000M084i	Black	6000 MHz	Panel Mount	Bulkhead - Front Side Nut	Male	SMA Jack	Shielded	N-Type Plug	LMR 240	84 in	2.1 m	7 ft	SMA to N-Type	Free Hanging (In-Line)	Female	50 Ohms
Amphenol Custom Cable Q-2K032000M048i	Black	6000 MHz	Panel Mount	Bulkhead - Front Side Nut	Male	SMA Jack	Shielded	N-Type Plug	LMR 240	48 in	1200 mm	4 ft	SMA to N-Type	Free Hanging (In-Line)	Female	50 Ohms
Amphenol Custom Cable Q-2K032000M108i	Black	6000 MHz	Panel Mount	Bulkhead - Front Side Nut	Male	SMA Jack	Shielded	N-Type Plug	LMR 240	108 in	2.7 m	9 ft	SMA to N-Type	Free Hanging (In-Line)	Female	50 Ohms
Amphenol Custom Cable Q-2K032000M024i	Black	6000 MHz	Panel Mount	Bulkhead - Front Side Nut	Male	SMA Jack	Shielded	N-Type Plug	LMR 240	24 "	609.6 mm		SMA to N-Type	Free Hanging (In-Line)	Female	50 Ohms
Amphenol Custom Cable Q-2K032000M0.5M	Black	6000 MHz	Panel Mount	Bulkhead - Front Side Nut	Male	SMA Jack	Shielded	N-Type Plug	LMR 240	19.69 "	50 cm		SMA to N-Type	Free Hanging (In-Line)	Female	50 Ohms
Amphenol Custom Cable Q-2K032000M072i	Black	6000 MHz	Panel Mount	Bulkhead - Front Side Nut	Male	SMA Jack	Shielded	N-Type Plug	LMR 240	72 in	1.8 m	6 ft	SMA to N-Type	Free Hanging (In-Line)	Female	50 Ohms
Amphenol Custom Cable Q-2K032000M1.5M	Black	6000 MHz	Panel Mount	Bulkhead - Front Side Nut	Male	SMA Jack	Shielded	N-Type Plug	LMR 240	59.1 in	1.5 m	4.9 ft	SMA to N-Type	Free Hanging (In-Line)	Female	50 Ohms
Amphenol Custom Cable Q-2K032000M002M	Black	6000 MHz	Panel Mount	Bulkhead - Front Side Nut	Male	SMA Jack	Shielded	N-Type Plug	LMR 240	78.7 in	2 m	6.6 ft	SMA to N-Type	Free Hanging (In-Line)	Female	50 Ohms
Amphenol Custom Cable Q-2K032000M060i	Black	6000 MHz	Panel Mount	Bulkhead - Front Side Nut	Male	SMA Jack	Shielded	N-Type Plug	LMR 240	5 '	1.5 m	5 ft	SMA to N-Type	Free Hanging (In-Line)	Female	50 Ohms
Amphenol Custom Cable Q-2K032000M036i	Black	6000 MHz	Panel Mount	Bulkhead - Front Side Nut	Male	SMA Jack	Shielded	N-Type Plug	LMR 240	36 in	91.44 cm		SMA to N-Type	Free Hanging (In-Line)	Female	50 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 160.64
		25	$ 159.29
		50	$ 157.94
		100	$ 156.60
		250	$ 155.25

Description

General part information

Q-2K0320 Series

Cable Assembly Coaxial SMA to N-Type LMR 240 60.0" (1.5m) 5.0'

Documents

Technical documentation and resources

No documents available
