DX1093/TR
ActiveBULGIN LIMITED

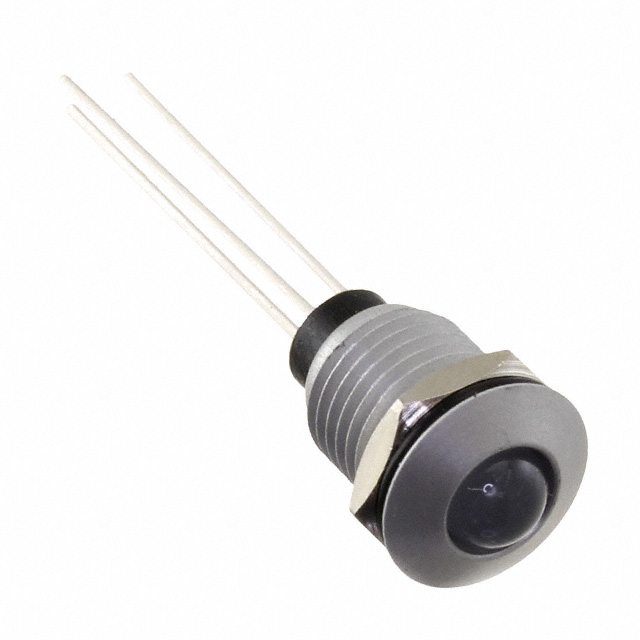

LED PANEL MOUNT INDICATOR, RED, AMBER, GREEN, 2.4 V, 8 MM, 30 MA, 2.5 MCD, IP66
DX1093/TR
ActiveBULGIN LIMITED
LED PANEL MOUNT INDICATOR, RED, AMBER, GREEN, 2.4 V, 8 MM, 30 MA, 2.5 MCD, IP66
Description
General part information
DX1093 Series
LED Panel Indicator Amber, Green, Red 2.4V Amber, 2.4V Green, 2.4V Red 30mA Amber, 30mA Green, 30mA Red PC Pin
Technical Specifications
Parameters and characteristics for this part
| Specification | DX1093/TR |
|---|---|
| Current (Amber) | 30 mA |
| Current (Green) | 30 mA |
| Current (Red) | 30 mA |
| Current Colors | Red, Green, Amber |
| Ingress Protection | IP66 |
| Lamp Color | Green, Amber, Red |
| Lens Size | 5 mm |
| Lens Size (Code) | T-1 3/4 |
| Lens Style | Round, Domed Top |
| Millicandela Rating (Amber) | 2.5 mcd |
| Millicandela Rating (Green) | 2.5 mcd |
| Millicandela Rating (Red) | 2.5 mcd |
| Millicandela Rating Colors | Green, Amber, Red |
| Panel Cutout Dimension | 0.315 " |
| Panel Cutout Shape | Round |
| Ratings | If (Max), Vf (Typ) |
| Termination Style | PC Pin |
| Type | LED |
| Voltage (Green) | 2.4 V |
| Voltage (Red) | 2.4 V |
| Voltage Color | Red, Amber, Green |
