CWR-181-09-0203

Active

CW Industries

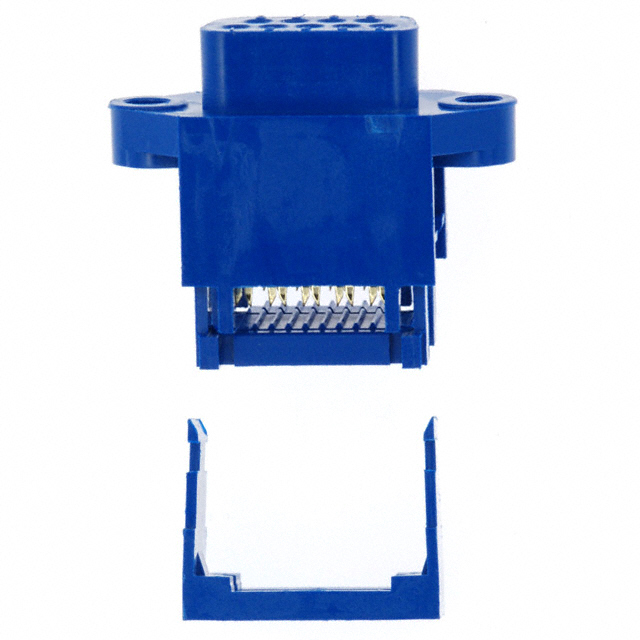

CONN D-SUB PLUG 9POS IDC

Deep-Dive with AI

Search across all available documentation for this part.

CWR-181-09-0203

Active

CW Industries

CONN D-SUB PLUG 9POS IDC

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CWR-181-09-0203

Color	Blue
Connector Style	D-Sub
Connector Type	Female Sockets, Plug
Contact Finish	Tin
Contact Finish Thickness	2.54 µm
Contact Finish Thickness	100 µin
Contact Material	Phosphor Bronze
Contact Type	Signal
Dielectric Material	Thermoplastic
Features	Feed Through, Strain Relief
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	IDC, Ribbon Cable
Wire Gauge [Max]	30 AWG
Wire Gauge [Min]	27.5 AWG

CWR-181 Series

Part	Termination	Features	Wire Gauge [Max]	Wire Gauge [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Color	Mounting Type	Contact Type	Dielectric Material	Connector Style	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Connector Type	Material Flammability Rating	Flange Feature	Contact Material	Contact Finish	Number of Rows	Number of Positions	Contact Finish Thickness	Contact Finish Thickness
CW Industries CWR-181-09-0000	IDC Ribbon Cable	Feed Through Strain Relief	30 AWG	27.5 AWG	-55 °C	125 °C	Blue	Free Hanging (In-Line)	Signal	Thermoplastic	D-Sub	DE E	1	Female Sockets Plug	UL94 V-0	Housing/Shell (Unthreaded)	Phosphor Bronze	Gold	2	9	10 Áin	0.25 Ám
CW Industries CWR-181-25-0003	IDC Ribbon Cable	Feed Through Strain Relief	30 AWG	27.5 AWG	-55 °C	125 °C	Blue	Free Hanging (In-Line)	Signal	Thermoplastic	D-Sub	B DB	3	Female Sockets Plug	UL94 V-0	Housing/Shell (Unthreaded)	Phosphor Bronze	Tin	2		100 µin	2.54 µm
CW Industries CWR-181-09-0021	IDC Ribbon Cable	Feed Through Strain Relief	30 AWG	27.5 AWG	-55 °C	125 °C	Blue	Free Hanging (In-Line)	Signal	Thermoplastic	D-Sub	DE E	1	Female Sockets Plug	UL94 V-0	Housing/Shell (Unthreaded)	Phosphor Bronze	Gold	2	9	30 Áin	0.76 Ám
CW Industries CWR-181-09-0203	IDC Ribbon Cable	Feed Through Strain Relief	30 AWG	27.5 AWG	-55 °C	125 °C	Blue	Free Hanging (In-Line)	Signal	Thermoplastic	D-Sub	DE E	1	Female Sockets Plug	UL94 V-0	Housing/Shell (Unthreaded)	Phosphor Bronze	Tin	2	9	100 µin	2.54 µm
CW Industries CWR-181-25-0203	IDC Ribbon Cable	Feed Through Strain Relief	30 AWG	27.5 AWG	-55 °C	125 °C	Blue	Free Hanging (In-Line)	Signal	Thermoplastic	D-Sub	B DB	3	Female Sockets Plug	UL94 V-0	Housing/Shell (Unthreaded)	Phosphor Bronze	Tin	2		100 µin	2.54 µm
CW Industries CWR-181-25-0000	IDC Ribbon Cable	Feed Through Strain Relief	30 AWG	27.5 AWG	-55 °C	125 °C	Blue	Free Hanging (In-Line)	Signal	Thermoplastic	D-Sub	B DB	3	Female Sockets Plug	UL94 V-0	Housing/Shell (Unthreaded)	Phosphor Bronze	Gold	2		10 Áin	0.25 Ám
CW Industries CWR-181-25-0021	IDC Ribbon Cable	Feed Through Strain Relief	30 AWG	27.5 AWG	-55 °C	125 °C	Blue	Free Hanging (In-Line)	Signal	Thermoplastic	D-Sub	B DB	3	Female Sockets Plug	UL94 V-0	Housing/Shell (Unthreaded)	Phosphor Bronze	Gold	2		30 Áin	0.76 Ám
CW Industries CWR-181-09-0003	IDC Ribbon Cable	Feed Through Strain Relief	30 AWG	27.5 AWG	-55 °C	125 °C	Blue	Free Hanging (In-Line)	Signal	Thermoplastic	D-Sub	DE E	1	Female Sockets Plug	UL94 V-0	Housing/Shell (Unthreaded)	Phosphor Bronze	Tin	2	9	100 µin	2.54 µm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.38
		10	$ 4.88
		25	$ 4.63
		50	$ 4.52
		100	$ 4.30
		300	$ 3.76
		500	$ 3.66
		1000	$ 3.12
		2500	$ 2.90

Description

General part information

CWR-181 Series

9 Position D-Sub Plug, Female Sockets Connector
