ERZ-E07 Series

Part	Maximum AC Volts	Package Diameter	Package Name	Current - Surge	Varistor Voltage (Typ)	Varistor Voltage (Max)	Capacitance	Number of Circuits	Mounting Type	Maximum DC Voltage	Energy	Operating Temperature (Max)	Operating Temperature (Min)	Varistor Voltage (Min)

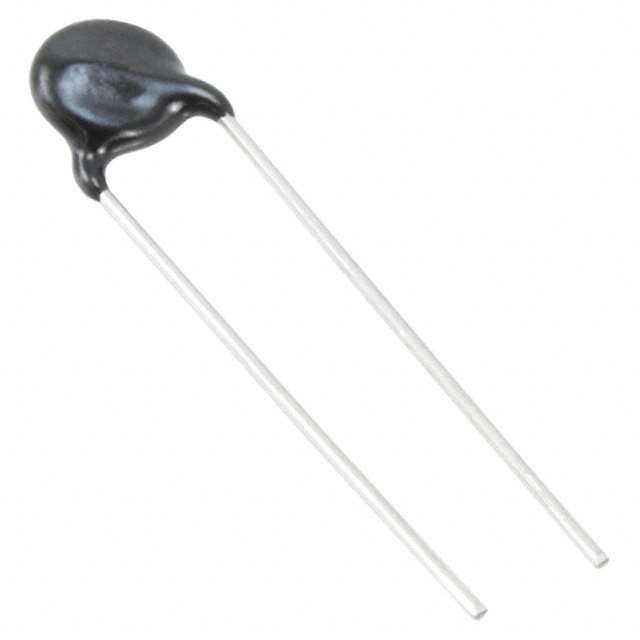

Panasonic Electronic Components ERZ-E07A241	150 V	9 mm	Disc	2500 A	240 V	264 V	350 pF	1	Through Hole	200 V	33 J	85 °C	-40 °C	216 V
Panasonic Electronic Components ERZ-E07A221CS	140 V	9 mm	Disc	2500 A	220 V	242 V	350 pF	1	Through Hole	180 V	30 J	85 °C	-40 °C	198 V
Panasonic Electronic Components ERZ-E07B471CS	300 V	9 mm	Disc	2500 A	470 V	517 V	170 pF	1	Through Hole	385 V	65 J	85 °C	-40 °C	423 V
Panasonic Electronic Components ERZ-E07A391CS	250 V	9 mm	Disc	2500 A	390 V	429 V	240 pF	1	Through Hole	320 V	53 J	85 °C	-40 °C	351 V
Panasonic Electronic Components ERZ-E07E361	230 V	9 mm	Disc	2500 A	360 V	396 V	260 pF	1	Through Hole	300 V	50 J	85 °C	-40 °C	324 V
Panasonic Electronic Components ERZ-E07A391	250 V	9 mm	Disc	2500 A	390 V	429 V	240 pF	1	Through Hole	320 V	53 J	85 °C	-40 °C	351 V
Panasonic Electronic Components ERZ-E07F391	250 V	9 mm	Disc	2500 A	390 V	429 V	240 pF	1	Through Hole	320 V	53 J	85 °C	-40 °C	351 V
Panasonic Electronic Components ERZ-E07F361	230 V	9 mm	Disc	2500 A	360 V	396 V	260 pF	1	Through Hole	300 V	50 J	85 °C	-40 °C	324 V
Panasonic Electronic Components ERZ-E07B511CS	320 V	9 mm	Disc	2500 A	510 V	561 V	140 pF	1	Through Hole	410 V	70 J	85 °C	-40 °C	459 V
Panasonic Electronic Components ERZ-E07A361CS	230 V	9 mm	Disc	2500 A	360 V	396 V	260 pF	1	Through Hole	300 V	50 J	85 °C	-40 °C	324 V
