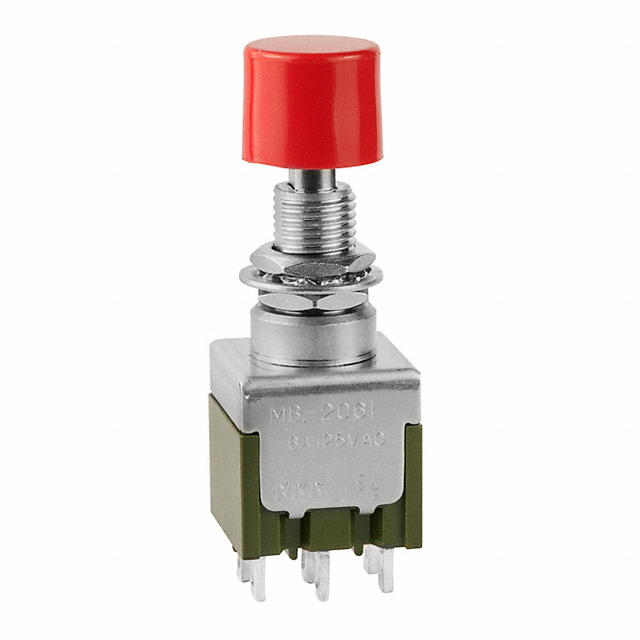

Specification	MB2061SD1W01-CC

Actuator Marking	No Marking
Actuator Type	Button, Round
Circuit	DPDT
Color - Actuator/Cap	Red
Current Rating	6 A, 3 A
Electrical Life (Cycles)	25000
Features	Epoxy Sealed Terminals
Mechanical Life (Cycles)	100000 Cycles
Mounting Type	Rear, Panel Mount
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-30 °C
Panel Cutout Diameter	6.5 mm
Panel Cutout Shape	Circular
Switch Function	On-Mom
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

MB2061S Series

Part	Electrical Life (Cycles)	Mechanical Life (Cycles)	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Type	Panel Cutout Diameter	Panel Cutout Shape	Switch Function	Voltage Rating - AC	Termination Style	Voltage Rating - DC	Actuator Type	Actuator Marking	Circuit	Current Rating	Features	Color - Actuator/Cap	Ingress Protection Description	Ingress Protection IP Rating
NKK Switches MB2061SS1W03/U	25000	100000 Cycles	Panel Mount Rear	85 °C	-30 °C	Standard	6.5 mm	Circular	On-Mom	125 V	PC Pin	30 V	Plunger for Cap	No Marking	DPDT	3 A 6 A	Epoxy Sealed Terminals
NKK Switches MB2061SS1A01-CA	25000	100000 Cycles	Panel Mount Rear	85 °C	-30 °C	Standard	6.5 mm	Circular	On-Mom	125 V	Solder Lug	30 V	Button Round	No Marking	DPDT	3 A 6 A	Epoxy Sealed Terminals	Black
NKK Switches MB2061SB1W01-5C-A	25000	100000 Cycles	Panel Mount Rear	85 °C	-30 °C	Standard	12.5 mm	Circular	On-Mom	125 V	Solder Lug	30 V	Button Rectangular	No Marking	DPDT	3 A 6 A	Epoxy Sealed Terminals	Red
NKK Switches MB2061SD1G01-CE	50000	100000 Cycles	Panel Mount Rear	85 °C	-30 °C	Standard	6.5 mm	Circular	On-Mom	28 V	Solder Lug	28 V	Button Round	No Marking	DPDT	0.4 VA	Epoxy Sealed Terminals	Yellow
NKK Switches MB2061SB1W01-4H-A	25000	100000 Cycles	Panel Mount Rear	85 °C	-30 °C	Standard	12.5 mm	Circular	On-Mom	125 V	Solder Lug	30 V	Button Round	No Marking	DPDT	3 A 6 A	Epoxy Sealed Terminals	Gray
NKK Switches MB2061SD1W01	25000	100000 Cycles	Panel Mount Rear	85 °C	-30 °C	Standard	6.5 mm	Circular	On-Mom	125 V	Solder Lug	30 V	Plunger for Cap	No Marking	DPDT	3 A 6 A	Epoxy Sealed Terminals
NKK Switches MB2061SS4W01-CC	25000	100000 Cycles	Panel Mount Rear	85 °C	-30 °C	Standard	6.5 mm	Circular	On-Mom	125 V	Solder Lug	30 V	Button Round	No Marking	DPDT	3 A 6 A	Epoxy Sealed Terminals	Red
NKK Switches MB2061SB1W03/CUL-DA	25000	100000 Cycles	Panel Mount Rear	85 °C	-30 °C	Standard	12.5 mm	Circular	On-Mom	125 V	PC Pin	30 V	Button Round	No Marking	DPDT	3 A 6 A	Epoxy Sealed Terminals	Black
NKK Switches MB2061SD3G01	50000	50000 Cycles	Panel Mount Rear	85 °C	-30 °C	Standard	6.5 mm	Circular	On-Mom	28 V	Solder Lug	28 V	Plunger for Cap	No Marking	DPDT	0.4 VA	Epoxy Sealed Terminals		Dust Tight Waterproof	IP67
NKK Switches MB2061SS1W03	25000	100000 Cycles	Panel Mount Rear	85 °C	-30 °C	Standard	6.5 mm	Circular	On-Mom	125 V	PC Pin	30 V	Plunger for Cap	No Marking	DPDT	3 A 6 A	Epoxy Sealed Terminals
