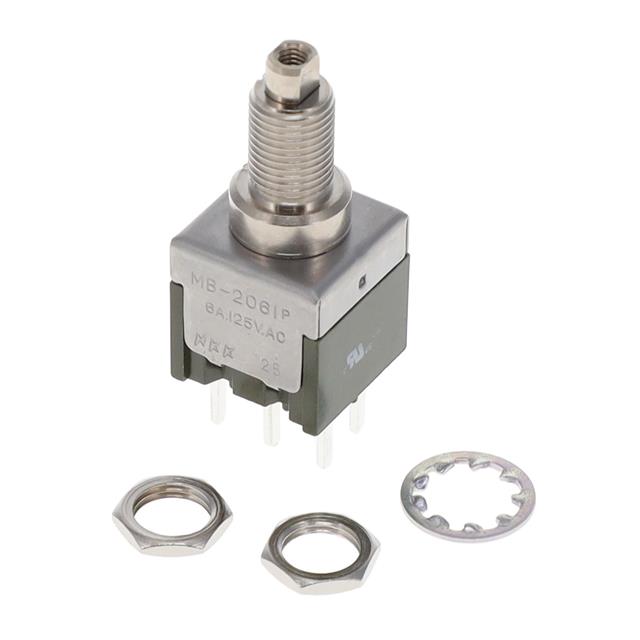

MB2061SS1W03/U

Obsolete

NKK Switches

SWITCH PUSHBUTTON DPDT 6A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MB2061SS1W03/U

Actuator Marking	No Marking
Actuator Type	Plunger for Cap
Circuit	DPDT
Current Rating (Amps)	3 A, 6 A
Electrical Life	25000 Steps
Features	Epoxy Sealed Terminals
Mechanical Life	100000 Cycles
Mounting Type	Panel Mount, Rear
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	6.5 mm
Switch Function	On-Mom
Termination Style	PC Pin
Type	Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

MB2061S Series

Part	Voltage Rating - DC	Actuator Type	Voltage Rating - AC	Type	Mechanical Life	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Panel Cutout Dimensions [diameter]	Switch Function	Features	Actuator Marking	Electrical Life	Mounting Type	Current Rating (Amps)	Circuit	Color - Actuator/Cap	Ingress Protection
NKK Switches MB2061SS1W03/U	30 V	Plunger for Cap	125 V	Standard	100000 Cycles	-30 ░C	85 °C	PC Pin	6.5 mm	On-Mom	Epoxy Sealed Terminals	No Marking	25000 Steps	Panel Mount Rear	3 A 6 A	DPDT
NKK Switches MB2061SS1A01-CA	30 V	Button Round	125 V	Standard	100000 Cycles	-30 ░C	85 °C	Solder Lug	6.5 mm	On-Mom	Epoxy Sealed Terminals	No Marking	25000 Steps	Panel Mount Rear	3 A 6 A	DPDT	Black
NKK Switches MB2061SB1W01-5C-A	30 V	Rectangular Button	125 V	Standard	100000 Cycles	-30 ░C	85 °C	Solder Lug	12.5 mm	On-Mom	Epoxy Sealed Terminals	No Marking	25000 Steps	Panel Mount Rear	3 A 6 A	DPDT	Red
NKK Switches MB2061SD1G01-CE	28 V	Button Round	28 V	Standard	100000 Cycles	-30 ░C	85 °C	Solder Lug	6.5 mm	On-Mom	Epoxy Sealed Terminals	No Marking	50000 Cycles	Panel Mount Rear	0.4 VA	DPDT	Yellow
NKK Switches MB2061SB1W01-4H-A	30 V	Button Round	125 V	Standard	100000 Cycles	-30 ░C	85 °C	Solder Lug	12.5 mm	On-Mom	Epoxy Sealed Terminals	No Marking	25000 Steps	Panel Mount Rear	3 A 6 A	DPDT
NKK Switches MB2061SD1W01	30 V	Plunger for Cap	125 V	Standard	100000 Cycles	-30 ░C	85 °C	Solder Lug	6.5 mm	On-Mom	Epoxy Sealed Terminals	No Marking	25000 Steps	Panel Mount Rear	3 A 6 A	DPDT
NKK Switches MB2061SS4W01-CC	30 V	Button Round	125 V	Standard	100000 Cycles	-30 ░C	85 °C	Solder Lug	6.5 mm	On-Mom	Epoxy Sealed Terminals	No Marking	25000 Steps	Panel Mount Rear	3 A 6 A	DPDT	Red
NKK Switches MB2061SB1W03/CUL-DA	30 V	Button Round	125 V	Standard	100000 Cycles	-30 ░C	85 °C	PC Pin	12.5 mm	On-Mom	Epoxy Sealed Terminals	No Marking	25000 Steps	Panel Mount Rear	3 A 6 A	DPDT	Black
NKK Switches MB2061SD3G01	28 V	Plunger for Cap	28 V	Standard		-30 ░C	85 °C	Solder Lug	6.5 mm	On-Mom	Epoxy Sealed Terminals	No Marking	50000 Cycles	Panel Mount Rear	0.4 VA	DPDT		IP67 - Dust Tight Waterproof
NKK Switches MB2061SS1W03	30 V	Plunger for Cap	125 V	Standard	100000 Cycles	-30 ░C	85 °C	PC Pin	6.5 mm	On-Mom	Epoxy Sealed Terminals	No Marking	25000 Steps	Panel Mount Rear	3 A 6 A	DPDT
