EA-LCD-006
ObsoleteEmbedded Artists

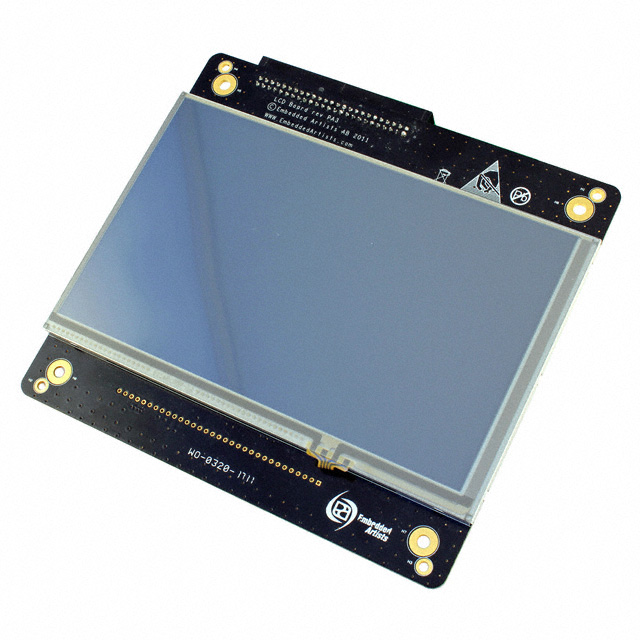

GRAPHIC DISPLAY TFT RGB 7"
Deep-Dive with AI
Search across all available documentation for this part.
EA-LCD-006
ObsoleteEmbedded Artists
GRAPHIC DISPLAY TFT RGB 7"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EA-LCD-006 | EA-LCD Series |
|---|---|---|
| Backlight | LED - White | LED - White |
| Diagonal Screen Size | 177.8 mm | 109.22 - 177.8 mm |
| Diagonal Screen Size | 7 in | 4.3 - 7 in |
| Display Mode | Transmissive | Transmissive |
| Display Type | TFT - Color | TFT - Color |
| Dot Pixels | WVGA | WVGA |
| Dot Pixels [x] | 800 | 480 - 800 |
| Dot Pixels [y] | 480 | 272 - 480 |
| Dot Size | - | 0.2 mm |
| Dot Size [x] | 0.06 mm | 0.06 mm |
| Dot Size [y] | 0.19 mm | 0.19 - 0.2 mm |
| Function | - | Embedded Graphics |
| Graphics Color | Green, Red, Blue | Green, Red, Blue |
| Interface | Parallel/Serial | Parallel, Parallel/Serial, I2C, SPI |
| Interface | - | 24 Bit |
| Supplied Contents | - | Cable(s), Board(s) |
| Touchscreen | Resistive | Resistive |
| Type | - | Display |
| Viewing Area | - | 53.86 mm |
| Viewing Area [x] | 152.4 mm | 95.04 - 152.4 mm |
| Viewing Area [z] | 91.44 mm | 91.44 mm |
EA-LCD Series
EXPANSION KIT DISPLAY 4.3 INCH
| Part | Display Mode | Diagonal Screen Size | Diagonal Screen Size | Graphics Color | Backlight | Dot Pixels [y] | Dot Pixels [x] | Display Type | Interface | Interface | Dot Size [y] | Dot Size [z] | Viewing Area [y] | Viewing Area [x] | Touchscreen | Viewing Area [z] | Dot Size [x] | Dot Pixels | Function | Type | Supplied Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Embedded Artists EA-LCD-011 | Transmissive | 109.22 mm | 4.3 in | Blue, Green, Red | LED - White | 272 | 480 | TFT - Color | Parallel | 24 Bit | 0.2 mm | 0.2 mm | 53.86 mm | 95.04 mm | |||||||
Embedded Artists EA-LCD-006 | Transmissive | 177.8 mm | 7 in | Blue, Green, Red | LED - White | 480 | 800 | TFT - Color | Parallel/Serial | 0.19 mm | 152.4 mm | Resistive | 91.44 mm | 0.06 mm | WVGA | ||||||
Embedded Artists EA-LCD-010 | Embedded Graphics | Display | Board(s), Cable(s) | ||||||||||||||||||
Embedded Artists EA-LCD-004 | Transmissive | 109.22 mm | 4.3 in | Blue, Green, Red | LED - White | 272 | 480 | TFT - Color | I2C, SPI | 0.2 mm | 0.2 mm | Resistive |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
EA-LCD Series
Resistive Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color Parallel/Serial 7" (177.80mm) 800 x 480 (WVGA)
