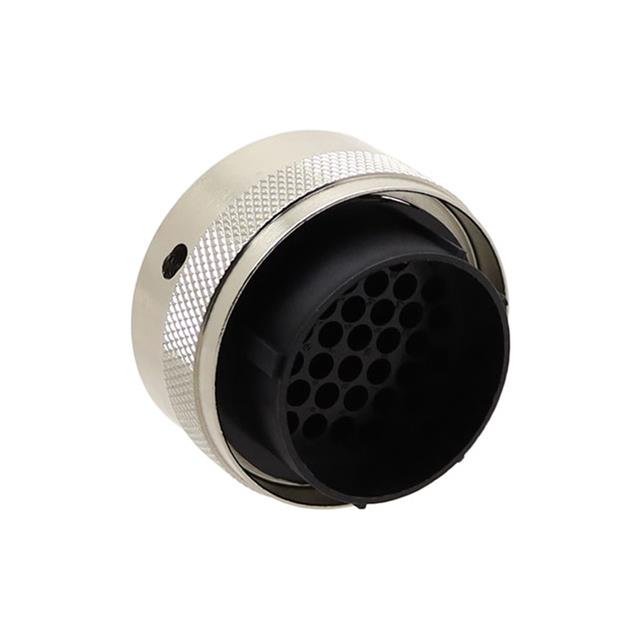

192922-1300
ActiveITT Cannon, LLC
CONN PLUG HSG MALE 35POS INLINE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
192922-1300
ActiveITT Cannon, LLC
CONN PLUG HSG MALE 35POS INLINE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 192922-1300 |
|---|---|
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Contact Type | Crimp and Solder Cup |
| Fastening Type | Detent Lock |
| Features | Coupling Nut |
| Housing Color | Black, Silver |
| Insert Material | Nylon, Polyamide (PA) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 35 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Orientation | Keyed |
| Shell Size - Insert [Max] | 35 |
| Shell Size - Insert [Min] | 22 |
| Shielding | Unshielded |
| Type | For Male Pins |
19292 Series
| Part | Material Flammability Rating | Mounting Type | Features | Contact Type | Orientation | Shielding | Housing Color | Operating Temperature [Max] | Operating Temperature [Min] | Fastening Type | Contact Shape | Type | Shell Size - Insert [Min] | Shell Size - Insert [Max] | Note | Connector Type | Number of Positions | Insert Material | Shell Size - Insert | Mounting Feature | Color | Cable Opening [custom] | Cable Opening [custom] | Shell Size - Insert | Includes | Material | For Use With/Related Products | Cable Exit | Diameter - Outside [diameter] | Diameter - Outside [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ITT Cannon, LLC | UL94 V-0 | Free Hanging (In-Line) | Coupling Nut | Crimp and Solder Cup | Keyed | Unshielded | Black Silver | 105 ░C | -55 °C | Detent Lock | Circular | For Female Sockets | 22 | 35 | Contacts Not Included | Plug Housing | 35 | Nylon Polyamide (PA) | ||||||||||||
ITT Cannon, LLC | UL94 V-0 | Crimp Solder Solder Cup | Keyed | Unshielded | Black | 105 ░C | -55 °C | Detent Lock | Circular | For Male Pins | Contacts Not Included | Receptacle Housing | 12 | Nylon Polyamide (PA) | 14-12 | Flange | ||||||||||||||
ITT Cannon, LLC | UL94 V-0 | Clamp Screws | Unshielded | Backshell Cable Clamp | Black | 0.905 in | 22.99 mm | 22 | 1 Backshell 2 Screws 3 Clamp Bars | Polyamide (PA) Nylon | Discrete Wires or Jacketed Cables | 180 ° | 39.6 mm | 1.559 in | ||||||||||||||||
ITT Cannon, LLC | UL94 V-0 | Free Hanging (In-Line) | Coupling Nut | Crimp and Solder Cup | Keyed | Unshielded | Black Silver | 105 ░C | -55 °C | Detent Lock | Circular | For Male Pins | 22 | 35 | Contacts Not Included | Plug Housing | 35 | Nylon Polyamide (PA) | ||||||||||||
ITT Cannon, LLC | UL94 V-0 | Crimp Solder Solder Cup | Keyed | Unshielded | Black | 105 ░C | -55 °C | Detent Lock | Circular | For Female Sockets | 20 | 28 | Contacts Not Included | Receptacle Housing | 28 | Nylon Polyamide (PA) | Flange |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 19.81 | |
| 10 | $ 17.34 | |||
| 25 | $ 16.59 | |||
| 50 | $ 16.06 | |||
| 100 | $ 15.52 | |||
| 250 | $ 14.67 | |||
| 500 | $ 14.24 | |||
Description
General part information
19292 Series
35 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
