HM72A-101R5LFTR13

Unknown

TT Electronics/BI Magnetics

FIXED IND 1.5UH 12A 5.8 MOHM SMD

Search across all available documentation for this part.

Unknown

TT Electronics/BI Magnetics

FIXED IND 1.5UH 12A 5.8 MOHM SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

FIXED IND 3.3UH 6.6A 28 MOHM SMD

Part	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Package / Case	Current - Saturation (Isat)	Type	Inductance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Inductance Frequency - Test	DC Resistance (DCR) [Max]	Height - Seated (Max)	Height - Seated (Max) [Max]	Current Rating (Amps)	Shielding	Height - Seated (Max) [Max]
TT Electronics/BI Magnetics HM72A-063R3LFTR13	-40 °C	130 °C	20 %	Nonstandard	13.5 A	Molded	3.3 µH	0.285 in	6.8 mm	0.268 in	7.23 mm	Surface Mount	100 kHz	28 mOhm	3 mm	0.118 in	6.6 A	Unshielded
TT Electronics/BI Magnetics HM72A-101R5LFTR13	-40 °C	130 °C	20 %	Nonstandard	27.5 A	Molded	1.5 µH	0.453 "	10.5 mm	0.413 in	11.5 mm	Surface Mount	100 kHz	5.8 mOhm		0.157 in	12 A	Unshielded	4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

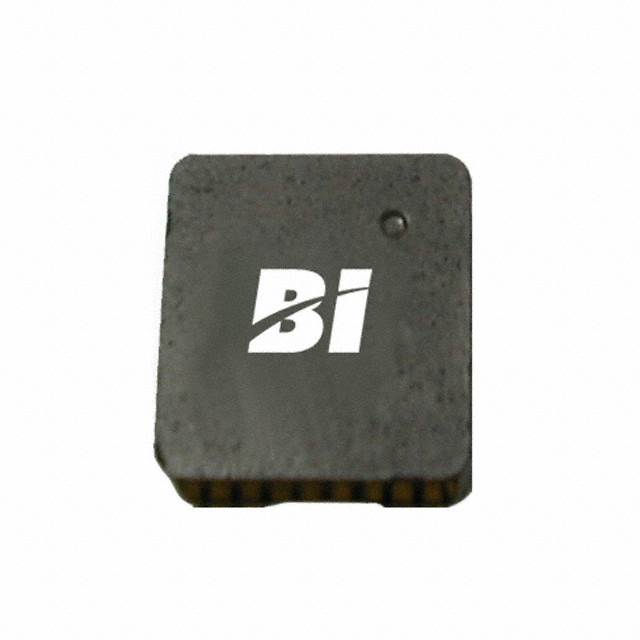

1.5 µH Unshielded Molded Inductor 12 A 5.8mOhm Max Nonstandard
