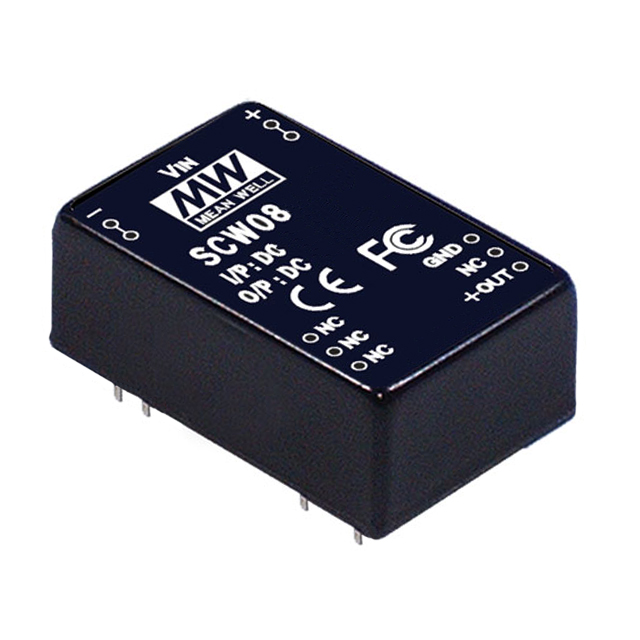

SCW08C-12
ActiveMEAN WELL USA Inc.
DC DC CONVERTER 12V 8W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SCW08C-12
ActiveMEAN WELL USA Inc.
DC DC CONVERTER 12V 8W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SCW08C-12 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 670 mA |
| Efficiency | 81 % |
| Features | OCP, SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 71 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 24-DIP Module, 8 Leads |
| Power (Watts) | 8 W |
| Size / Dimension [x] | 1.25 " |
| Size / Dimension [x] | 31.8 mm |
| Size / Dimension [y] | 20.3 mm |
| Size / Dimension [y] | 0.8 in |
| Size / Dimension [z] | 0.48 in |
| Size / Dimension [z] | 12.2 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 72 V |
| Voltage - Input (Min) [Min] | 36 V |
| Voltage - Isolation | 1000 V |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 15.71 | |
| 5 | $ 15.13 | |||
| 10 | $ 14.88 | |||
Description
General part information
SCW08 Series
Isolated Module DC DC Converter 1 Output 12V 670mA 36V - 72V Input
