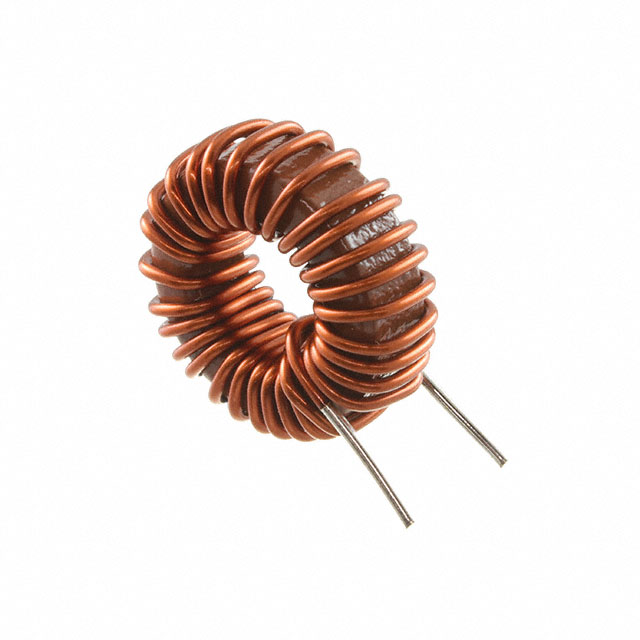

HHBC12-1R0A0028V
ActiveKEMET
CMC 28UH 5A 2LN TH
Deep-Dive with AI
Search across all available documentation for this part.
HHBC12-1R0A0028V
ActiveKEMET
CMC 28UH 5A 2LN TH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HHBC12-1R0A0028V |
|---|---|
| Current Rating (Max) [Max] | 5 A |
| DC Resistance (DCR) (Max) [Max] | 21.1 mOhm |
| Height (Max) | 26 mm |
| Height (Max) [Max] [z] | 1.024 in |
| Inductance @ Frequency | 28 µH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Vertical, No Base |
| Package / Case | 2 Lead |
| Size / Dimension | 26 mm |
| Size / Dimension [diameter] | 1.024 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 240 | $ 2.32 | |
Description
General part information
HHBC12 Series
28 µH @ 100 kHz 2 Line Common Mode Choke Through Hole 5A DCR 21.1mOhm
