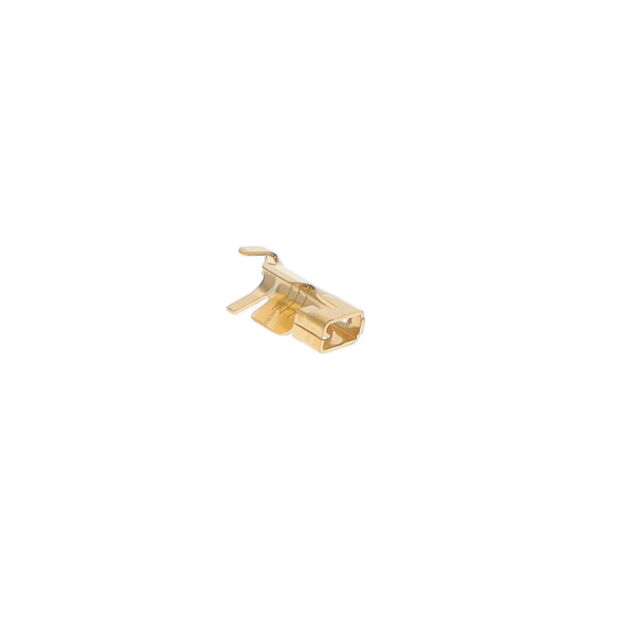

JN-18S-C1B-A1-3500
ActiveJAE Electronics
AWG#20-18, SOCKET CONTACT FOR 4
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
JN-18S-C1B-A1-3500
ActiveJAE Electronics
AWG#20-18, SOCKET CONTACT FOR 4
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | JN-18S-C1B-A1-3500 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 4 Áin |
| Contact Finish Thickness | 0.1 Ám |
| Contact Termination | Crimp |
| Pin or Socket | Socket |
| Wire Gauge [Max] | 20 AWG |
| Wire Gauge [Min] | 17.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.04 | |
| 10 | $ 1.73 | |||
| 25 | $ 1.66 | |||
| 50 | $ 1.62 | |||
| 100 | $ 1.55 | |||
| 250 | $ 1.41 | |||
| 500 | $ 1.27 | |||
| 1000 | $ 1.13 | |||
| Tape & Reel (TR) | 3500 | $ 0.58 | ||
Description
General part information
JN-18S-C1B Series
Socket Contact Gold 18-20 AWG Crimp
