EL7563CRE

Active

Intersil

IC REG BUCK ADJ 4A 28HTSSOP

Search across all available documentation for this part.

Active

Intersil

IC REG BUCK ADJ 4A 28HTSSOP

Technical Specifications

Parameters and characteristics for this part

IC REG BUCK ADJ 4A 28HTSSOP

Part	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Synchronous Rectifier	Function	Voltage - Input (Min) [Min]	Voltage - Output (Min/Fixed)	Current - Output	Output Configuration	Topology	Frequency - Switching [Max]	Frequency - Switching [Min]	Package / Case	Package / Case [custom]	Package / Case [x]	Output Type	Voltage - Input (Max) [Max]	Number of Outputs
Intersil EL7563CRE	28-HTSSOP	85 °C	-40 °C	Surface Mount		Step-Down	3 V	1 V	4 A	Positive	Buck	420 kHz	310 kHz	28-TSSOP, Exposed Pad	4.4 mm	0.173 in	Adjustable	3.6 V	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

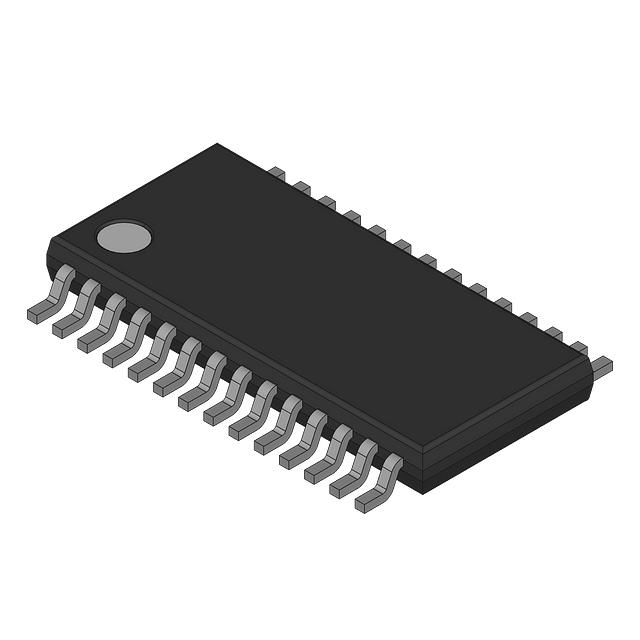

Buck Switching Regulator IC Positive Adjustable 1V 1 Output 4A 28-TSSOP (0.173", 4.40mm Width) Exposed Pad

Technical documentation and resources

No documents available
