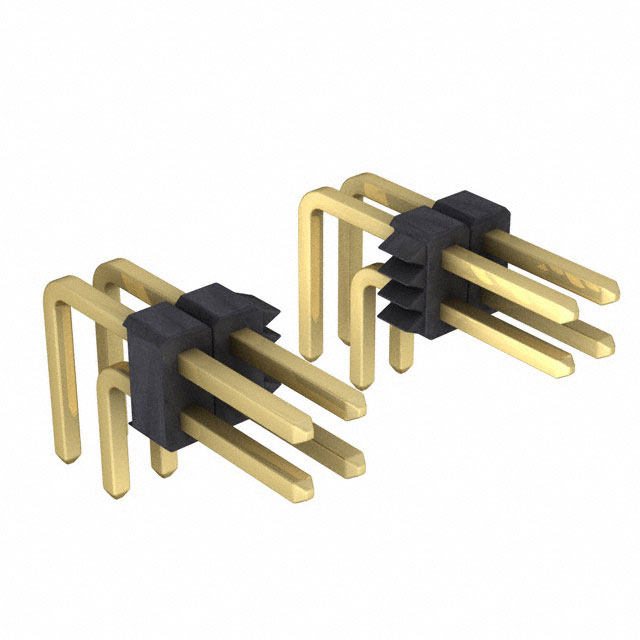

882-70-078-20-001101

Active

PRECI-DIP SA

CONN HEADER R/A 78POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

882-70-078-20-001101

Active

PRECI-DIP SA

CONN HEADER R/A 78POS 2MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	882-70-078-20-001101

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Mating	4 mm
Contact Length - Mating	0.157 in
Contact Length - Post	2.79 mm
Contact Length - Post [x]	0.11 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [custom]	0.157 in
Insulation Height [custom]	4 mm
Insulation Material	Nylon, Polyamide (PA), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	78
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Unshrouded
Termination	Solder
Voltage Rating	150 VDC

882-70 Series

Part	Number of Rows	Number of Positions	Connector Type	Fastening Type	Contact Finish Thickness - Mating	Contact Shape	Contact Finish - Post	Contact Length - Post [x]	Contact Length - Post	Contact Material	Voltage Rating	Material Flammability Rating	Insulation Material	Contact Finish Thickness - Post	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Mating	Contact Length - Mating	Number of Positions Loaded	Pitch - Mating [x]	Pitch - Mating [x]	Shrouding	Insulation Height [custom]	Insulation Height [custom]	Contact Type	Contact Finish - Mating	Mounting Type	Termination	Row Spacing - Mating	Row Spacing - Mating	Insulation Height	Insulation Height	Overall Contact Length	Overall Contact Length
PRECI-DIP SA 882-70-044-20-001101	2	44	Header	Push-Pull	Flash	Square	Gold	0.11 in	2.79 mm	Brass	150 VDC	UL94 V-0	Glass Filled Nylon Polyamide (PA)	Flash	Black	-55 °C	125 °C	4 mm	0.157 in	All	0.079 in	2 mm	Unshrouded	0.157 in	4 mm	Male Pin	Gold	Through Hole Right Angle	Solder	0.079 in	2 mm
PRECI-DIP SA 882-70-078-20-001101	2	78	Header	Push-Pull	Flash	Square	Gold	0.11 in	2.79 mm	Brass	150 VDC	UL94 V-0	Glass Filled Nylon Polyamide (PA)	Flash	Black	-55 °C	125 °C	4 mm	0.157 in	All	0.079 in	2 mm	Unshrouded	0.157 in	4 mm	Male Pin	Gold	Through Hole Right Angle	Solder	0.079 in	2 mm
PRECI-DIP SA 882-70-026-20-001101	2	26	Header	Push-Pull	Flash	Square	Gold	0.11 in	2.79 mm	Brass	150 VDC	UL94 V-0	Glass Filled Nylon Polyamide (PA)	Flash	Black	-55 °C	125 °C	4 mm	0.157 in	All	0.079 in	2 mm	Unshrouded	0.157 in	4 mm	Male Pin	Gold	Through Hole Right Angle	Solder	0.079 in	2 mm
PRECI-DIP SA 882-70-004-10-001101	2	4	Header	Push-Pull	Flash	Square	Gold	0.11 in	2.79 mm	Brass	150 VDC	UL94 V-0	Glass Filled Nylon Polyamide (PA)	Flash	Black	-55 °C	125 °C	4 mm	0.157 in	All	0.079 in	2 mm	Unshrouded			Male Pin	Gold	Through Hole	Solder	0.079 in	2 mm	0.079 in	2 mm	8.8 mm	0.346 in
PRECI-DIP SA 882-70-072-20-001101	2	72	Header	Push-Pull	Flash	Square	Gold	0.11 in	2.79 mm	Brass	150 VDC	UL94 V-0	Glass Filled Nylon Polyamide (PA)	Flash	Black	-55 °C	125 °C	4 mm	0.157 in	All	0.079 in	2 mm	Unshrouded	0.157 in	4 mm	Male Pin	Gold	Through Hole Right Angle	Solder	0.079 in	2 mm
PRECI-DIP SA 882-70-026-10-001101	2	26	Header	Push-Pull	Flash	Square	Gold	0.11 in	2.79 mm	Brass	150 VDC	UL94 V-0	Glass Filled Nylon Polyamide (PA)	Flash	Black	-55 °C	125 °C	4 mm	0.157 in	All	0.079 in	2 mm	Unshrouded			Male Pin	Gold	Through Hole	Solder	0.079 in	2 mm	0.079 in	2 mm	8.8 mm	0.346 in
PRECI-DIP SA 882-70-056-10-001101	2	56	Header	Push-Pull	Flash	Square	Gold	0.11 in	2.79 mm	Brass	150 VDC	UL94 V-0	Glass Filled Nylon Polyamide (PA)	Flash	Black	-55 °C	125 °C	4 mm	0.157 in	All	0.079 in	2 mm	Unshrouded			Male Pin	Gold	Through Hole	Solder	0.079 in	2 mm	0.079 in	2 mm	8.8 mm	0.346 in
PRECI-DIP SA 882-70-032-10-001101	2		Header	Push-Pull	Flash	Square	Gold	0.11 in	2.79 mm	Brass	150 VDC	UL94 V-0	Glass Filled Nylon Polyamide (PA)	Flash	Black	-55 °C	125 °C	4 mm	0.157 in	All	0.079 in	2 mm	Unshrouded			Male Pin	Gold	Through Hole	Solder	0.079 in	2 mm	0.079 in	2 mm	8.8 mm	0.346 in
PRECI-DIP SA 882-70-006-20-001101	2	6	Header	Push-Pull	Flash	Square	Gold	0.11 in	2.79 mm	Brass	150 VDC	UL94 V-0	Glass Filled Nylon Polyamide (PA)	Flash	Black	-55 °C	125 °C	4 mm	0.157 in	All	0.079 in	2 mm	Unshrouded	0.157 in	4 mm	Male Pin	Gold	Through Hole Right Angle	Solder	0.079 in	2 mm
PRECI-DIP SA 882-70-018-10-001101	2	18	Header	Push-Pull	Flash	Square	Gold	0.11 in	2.79 mm	Brass	150 VDC	UL94 V-0	Glass Filled Nylon Polyamide (PA)	Flash	Black	-55 °C	125 °C	4 mm	0.157 in	All	0.079 in	2 mm	Unshrouded			Male Pin	Gold	Through Hole	Solder	0.079 in	2 mm	0.079 in	2 mm	8.8 mm	0.346 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	130	$ 5.98

Description

General part information

882-70 Series

Connector Header Through Hole, Right Angle 78 position 0.079" (2.00mm)
