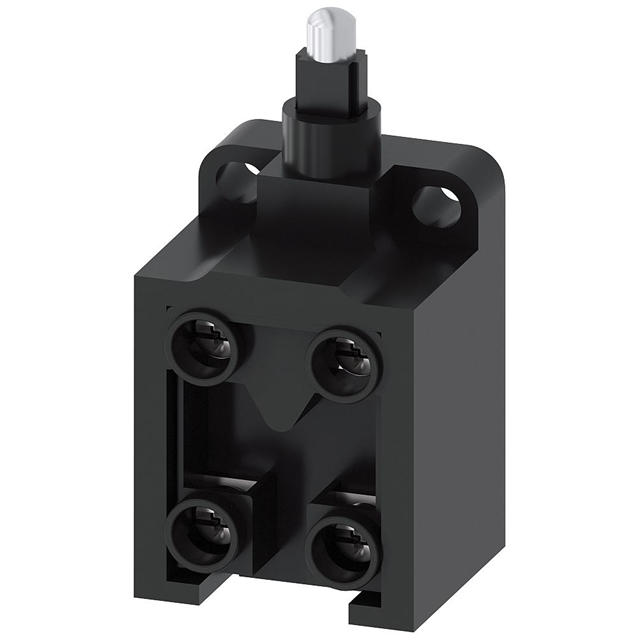

3SE52500BC05

Active

Siemens

SWITCH LIMIT DPST 6A 120V

Search across all available documentation for this part.

Active

Siemens

SWITCH LIMIT DPST 6A 120V

Technical Specifications

Parameters and characteristics for this part

Part	Voltage Rating - AC	Ingress Protection	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Electrical Life	Current Rating (Amps)	Voltage Rating - DC	Operating Force	Mounting Type	Switch Function	Circuit	Mechanical Life
Siemens 3SE52500LC05	120 V	IP10	Screw Terminal	-25 °C	85 °C	Round (Pin Plunger)	100000 Cycles	3 A 6 A	24 V	2039 gf	Chassis Mount	Off-Mom On-Mom	3PST-2NC/1NO	15000000 Cycles
Siemens 3SE52500BC05	120 V		Screw Terminal	-25 °C	85 °C	Round (Pin Plunger)	100000 Cycles	3 A 6 A	24 V	2039 gf	Chassis Mount	Off-Mom On-Mom	DPST-NO/NC	15000000 Cycles
Siemens 3SE52500PC05	120 V	IP10	Screw Terminal	-25 °C	85 °C	Round (Pin Plunger)	100000 Cycles	3 A 6 A	24 V	2039 gf	Chassis Mount	Off-Mom On-Mom	3PST-2NO/1NC	15000000 Cycles
Siemens 3SE52500KC05	120 V		Screw Terminal	-25 °C	85 °C	Round (Pin Plunger)	100000 Cycles	3 A 6 A	24 V	2039 gf	Chassis Mount	Off-Mom On-Mom	3PST-2NC/1NO	15000000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 90.07
