50C14X51AM

Active

Altech Corporation

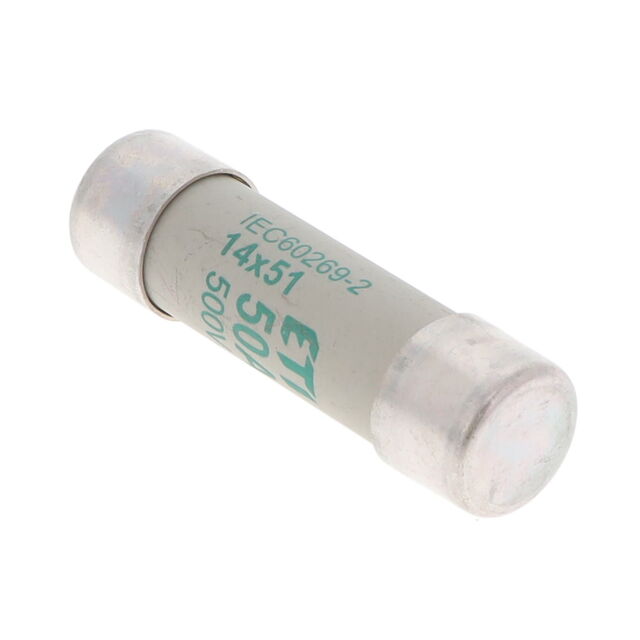

FUSE CYL 14X51MM 50A 400V

Search across all available documentation for this part.

Active

Altech Corporation

FUSE CYL 14X51MM 50A 400V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	50C14X51AM	50C14 Series

	-	-
Applications	Motor Protection	Motor Protection
Approval Agency	CE	CE
Breaking Capacity @ Rated Voltage	120 kA	120 kA
Current Rating (Amps)	50 A	50 A
Fuse Type	Cartridge	Cartridge
Mounting Type	Requires Holder	Requires Holder
Package / Case	Cartridge, Non-Standard	Cartridge, Non-Standard
Response Time	Fast Blow	Fast Blow
Size / Dimension [diameter]	14 mm	14 mm
Size / Dimension [diameter]	0.551 in	0.551 in
Size / Dimension [x]	51 mm	51 mm
Size / Dimension [x]	2.008 in	2.008 in
Voltage Rating - AC	500 VAC	500 VAC

FUSE CYL 14X51MM 50A 400V

Part	Package / Case	Approval Agency	Fuse Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [x]	Applications	Breaking Capacity @ Rated Voltage	Voltage Rating - AC	Response Time	Mounting Type	Current Rating (Amps)
Altech Corporation 50C14X51AM	Cartridge, Non-Standard	CE	Cartridge	14 mm	0.551 in	51 mm	2.008 in	Motor Protection	120 kA	500 VAC	Fast Blow	Requires Holder	50 A
Altech Corporation 50C14X51SC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

50A 500 VAC Fuse Cartridge Requires Holder
