IGZ75N65H5XKSA1

Active

Infineon Technologies

650 V, 75 A TRENCHSTOP™ IGBT 5 IN TO247 HOUSING. WITH A SWITCHING FREQUENCY RANGE FROM 30 KHZ TO 100 KHZ IT PERFECTLY MATCHES APPLICATIONS LIKE MID-HIGH FREQUENCY CONVERTER, SOLAR CONVERTER, UNINTERRUPTIBLE POWER SUPPLY OR WELDING CONVERTER.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

IGZ75N65H5XKSA1

Active

Infineon Technologies

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IGZ75N65H5XKSA1

Current - Collector (Ic) (Max)	119 A
Current - Collector Pulsed (Icm)	300 A
Gate Charge	166 nC
IGBT Type	Trench
Mounting Type	Through Hole
Operating Temperature [Max]	175 °C
Operating Temperature [Min]	-40 C

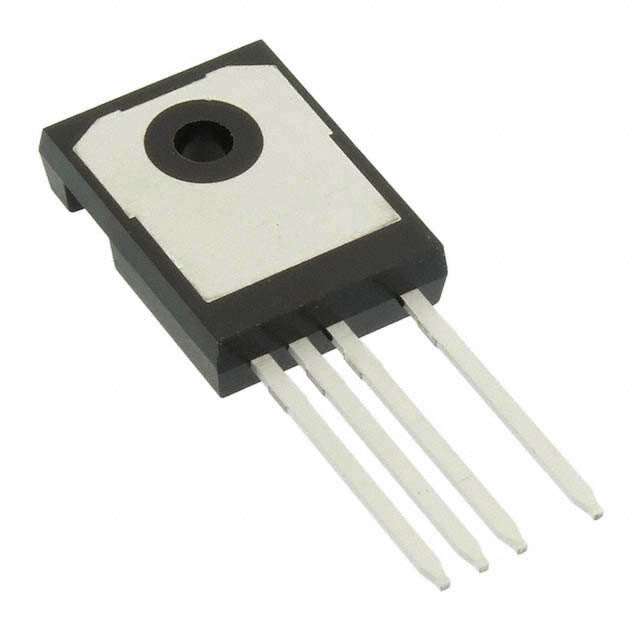

Package / Case	TO-247-4
Power - Max [Max]	395 W
Supplier Device Package	PG-TO247-4
Switching Energy	680 µJ, 430 µJ
Td (on/off) @ 25°C	26 ns, 347 ns
Test Condition	15 V, 400 V, 37.5 A, 10 Ohm
Vce(on) (Max) @ Vge, Ic	2.1 V
Voltage - Collector Emitter Breakdown (Max)	650 V

IGZ75N65 Series

Part	Td (on/off) @ 25°C	Power - Max [Max]	Current - Collector Pulsed (Icm)	Test Condition	Supplier Device Package	Switching Energy	Current - Collector (Ic) (Max)	Gate Charge	IGBT Type	Package / Case	Voltage - Collector Emitter Breakdown (Max)	Vce(on) (Max) @ Vge, Ic	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]
Infineon Technologies IGZ75N65H5XKSA1	26 ns 347 ns	395 W	300 A	10 Ohm 15 V 37.5 A 400 V	PG-TO247-4	430 µJ 680 µJ	119 A	166 nC	Trench	TO-247-4	650 V	2.1 V	Through Hole	-40 C	175 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 7.63
		30	$ 4.41
		120	$ 3.70
		510	$ 3.19

Description

General part information

IGZ75N65 Series

To further enhance the best-in-class performance of the TRENCHSTOP™ 5 IGBT technology, Infineon offers the technology in a high power package with an extra Kelvin emitter pin. The TO-247 4pin provides ultra-low inductance to the gate-emitter control loop and brings TRENCHSTOP™ 5 IGBT to the next level of best in class switching performance. The standard TO-247 package body has been taken and an extra, 4th pin, has been added to enable the Kelvin emitter configuration.
