A8GS-P1315

Active

Omron Electronics Inc-EMC Div

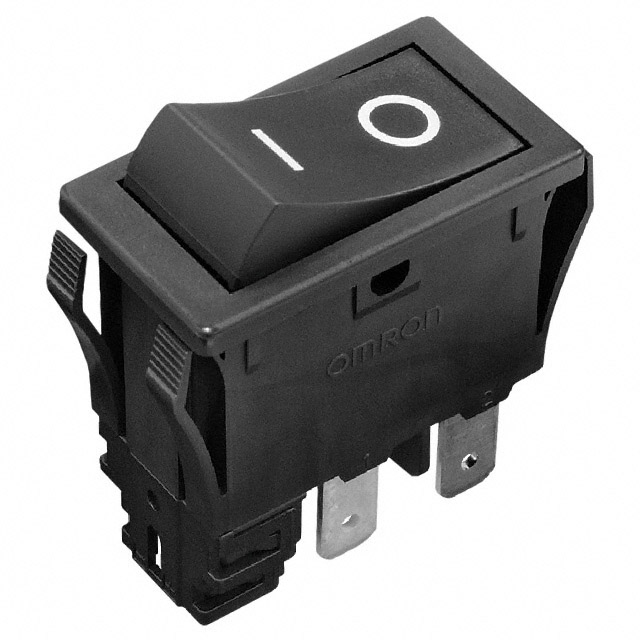

SWITCH ROCKER SPST 16A 125V

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SWITCH ROCKER SPST 16A 125V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A8GS-P1315	A8GS-P131 Series

Actuator Marking	O I	O I
Actuator Type	Concave (Curved)	Concave (Curved)
Approval Agency	cULus, EN, UL	cULus, EN, UL
Circuit	SPST	SPST
Color - Actuator/Cap	Black	Black
Current Rating (Amps)	16 A	16 A
Electrical Life	10000 Cycles	10000 Cycles
Features	Remote Reset Function	Remote Reset Function
Mechanical Life	30000 Steps	30000 Steps
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Operating Temperature [Max] [custom]	55 °C	55 °C
Operating Temperature [Min] [custom]	-10 °C	-10 °C
Panel Cutout Dimensions [x]	27.7 mm	27.7 mm
Panel Cutout Dimensions [y]	15.2 mm	15.2 mm
Switch Function	On-Off	On-Off
Termination Style	Solder Lug	Solder Lug
Voltage Rating - AC	125 V	125 V

SWITCH ROCKER SPST 16A 125V

Part	Electrical Life	Approval Agency	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Mechanical Life	Termination Style	Color - Actuator/Cap	Voltage Rating - AC	Features	Current Rating (Amps)	Actuator Marking	Actuator Type	Switch Function	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Mounting Type	Circuit
Omron Electronics Inc-EMC Div A8GS-P1315	10000 Cycles	cULus, EN, UL	55 °C	-10 °C	30000 Steps	Solder Lug	Black	125 V	Remote Reset Function	16 A	O I	Concave (Curved)	On-Off	15.2 mm	27.7 mm	Panel Mount, Snap-In	SPST
Omron Electronics Inc-EMC Div A8GS-P1310	10000 Cycles	cULus, EN, UL	55 °C	-10 °C	30000 Steps	Solder Lug	Black	125 V		16 A	O I	Concave (Curved)	On-Off	15.2 mm	27.7 mm	Panel Mount, Snap-In	SPST

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch SPST 16A (AC) 125 V Panel Mount, Snap-In
