1SR156-400TE25

Active

Rohm Semiconductor

DIODE GEN PURP 400V 1A PMDS

Search across all available documentation for this part.

Active

Rohm Semiconductor

DIODE GEN PURP 400V 1A PMDS

Technical Specifications

Parameters and characteristics for this part

Specification	1SR156-400TE25

Current - Average Rectified (Io)	1 A
Current - Reverse Leakage @ Vr	10 µA
Mounting Type	Surface Mount
Operating Temperature - Junction	150 °C

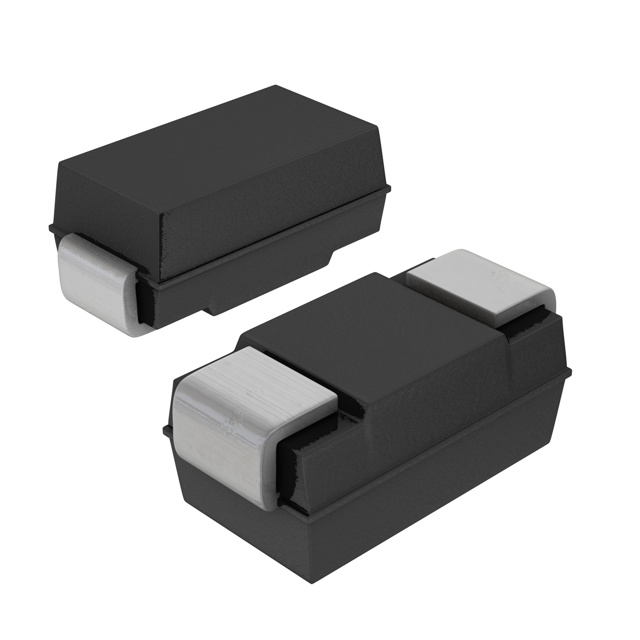

Package / Case	DO-214AC, SMA
Reverse Recovery Time (trr)	400 ns
Speed	200 mA, 500 ns
Supplier Device Package	PMDS
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	400 V
Voltage - Forward (Vf) (Max) @ If	1.3 V

DIODE GEN PURP 400V 1A PMDS

Part	Reverse Recovery Time (trr)	Mounting Type	Technology	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If	Voltage - DC Reverse (Vr) (Max) [Max]	Supplier Device Package	Current - Reverse Leakage @ Vr	Operating Temperature - Junction	Package / Case	Speed
Rohm Semiconductor 1SR156-400TE25	400 ns	Surface Mount	Standard	1 A	1.3 V	400 V	PMDS	10 µA	150 °C	DO-214AC, SMA	200 mA, 500 ns

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 400 V 1A Surface Mount PMDS

Technical documentation and resources

No documents available
