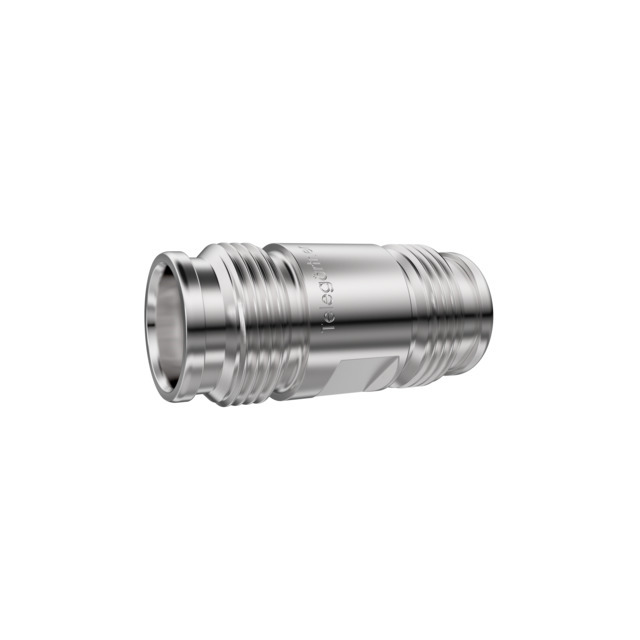

100025517

Active

Telegartner Inc

2.2-5 ADAPT STR F-F

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

100025517

Active

Telegartner Inc

2.2-5 ADAPT STR F-F

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	100025517	J01462A0 Series

Adapter Series	2.2/5 to 2.2/5	2.2/5 to 2.2/5
Adapter Type	Jack to Jack	Plug to Jack, Plug to Plug, Jack to Jack
Body Finish	Silver	White Bronze, Silver
Body Material	Copper Alloy	Copper Alloy
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Silver	Silver
Center Gender	Female to Female	Male to Male, Female to Female
Conversion Type	Same Series	Same Series
Convert From (Adapter End)	2.2/5 Jack, Female Socket	2.2/5 Jack, Female Socket, 2.2/5 Plug, Male Pin
Convert To (Adapter End)	2.2/5 Jack, Female Socket	2.2/5 Plug, Male Pin, 2.2/5 Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	6000 MHz	6000 MHz
Impedance	50 Ohms	50 Ohms
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Mounting Feature	-	Bulkhead
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line), Right Angle
Operating Temperature [Max]	90 °C	90 °C
Operating Temperature [Min]	-55 °C	-55 °C
Style	Straight	Straight, Right Angle

J01462A0 Series

2.2-5 ADAPT STR S M-F PORTSAV

Part	Convert To (Adapter End)	Dielectric Material	Body Finish	Ingress Protection	Conversion Type	Impedance	Center Contact Plating	Operating Temperature [Max]	Operating Temperature [Min]	Adapter Series	Convert From (Adapter End)	Adapter Type	Center Contact Material	Frequency - Max [Max]	Mounting Type	Style	Body Material	Center Gender	Mounting Feature
Telegartner Inc 100025521	2.2/5 Plug, Male Pin	Polytetrafluoroethylene (PTFE)	White Bronze	IP68 - Dust Tight, Waterproof	Same Series	50 Ohms	Silver	90 °C	-55 °C	2.2/5 to 2.2/5	2.2/5 Jack, Female Socket	Plug to Jack	Beryllium Copper	6000 MHz	Free Hanging (In-Line)	Straight
Telegartner Inc 100025522	2.2/5 Plug, Male Pin	Polytetrafluoroethylene (PTFE)	Silver	IP68 - Dust Tight, Waterproof	Same Series	50 Ohms	Silver	90 °C	-55 °C	2.2/5 to 2.2/5	2.2/5 Jack, Female Socket	Plug to Jack	Beryllium Copper	6000 MHz	Free Hanging (In-Line), Right Angle	Right Angle	Copper Alloy
Telegartner Inc 100025519	2.2/5 Plug, Male Pin	Polytetrafluoroethylene (PTFE)	White Bronze	IP68 - Dust Tight, Waterproof	Same Series	50 Ohms	Silver	90 °C	-55 °C	2.2/5 to 2.2/5	2.2/5 Plug, Male Pin	Plug to Plug	Beryllium Copper	6000 MHz	Free Hanging (In-Line)	Straight		Male to Male
Telegartner Inc 100025518	2.2/5 Jack, Female Socket	Polytetrafluoroethylene (PTFE)	Silver	IP68 - Dust Tight, Waterproof	Same Series	50 Ohms	Silver	90 °C	-55 °C	2.2/5 to 2.2/5	2.2/5 Jack, Female Socket	Jack to Jack	Beryllium Copper	6000 MHz		Straight	Copper Alloy	Female to Female	Bulkhead
Telegartner Inc 100025517	2.2/5 Jack, Female Socket	Polytetrafluoroethylene (PTFE)	Silver	IP68 - Dust Tight, Waterproof	Same Series	50 Ohms	Silver	90 °C	-55 °C	2.2/5 to 2.2/5	2.2/5 Jack, Female Socket	Jack to Jack	Beryllium Copper	6000 MHz	Free Hanging (In-Line)	Straight	Copper Alloy	Female to Female

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 56.19
		10	$ 51.64
		25	$ 47.76
		50	$ 42.46

Description

General part information

J01462A0 Series

Adapter Coaxial Connector 2.2/5 Jack, Female Socket To 2.2/5 Jack, Female Socket 50 Ohms
